Panel Based
Pre-fabricated bamboo panel modules assembled side-by-side to create the structure. Suitable for smaller spans and modular layouts.
Available Spans: 12 ft · 16 ft · 24 ft
Truss Based
Pre-fabricated bamboo truss systems for larger spans. Provides clear internal space with no intermediate columns within the span.
Available Spans: 20 ft · 24 ft · 36 ft
Panel Based Poly-Shed Net
Modular bamboo panel construction. Quick to erect, easy to expand, and fully relocatable.
Span 12 ft

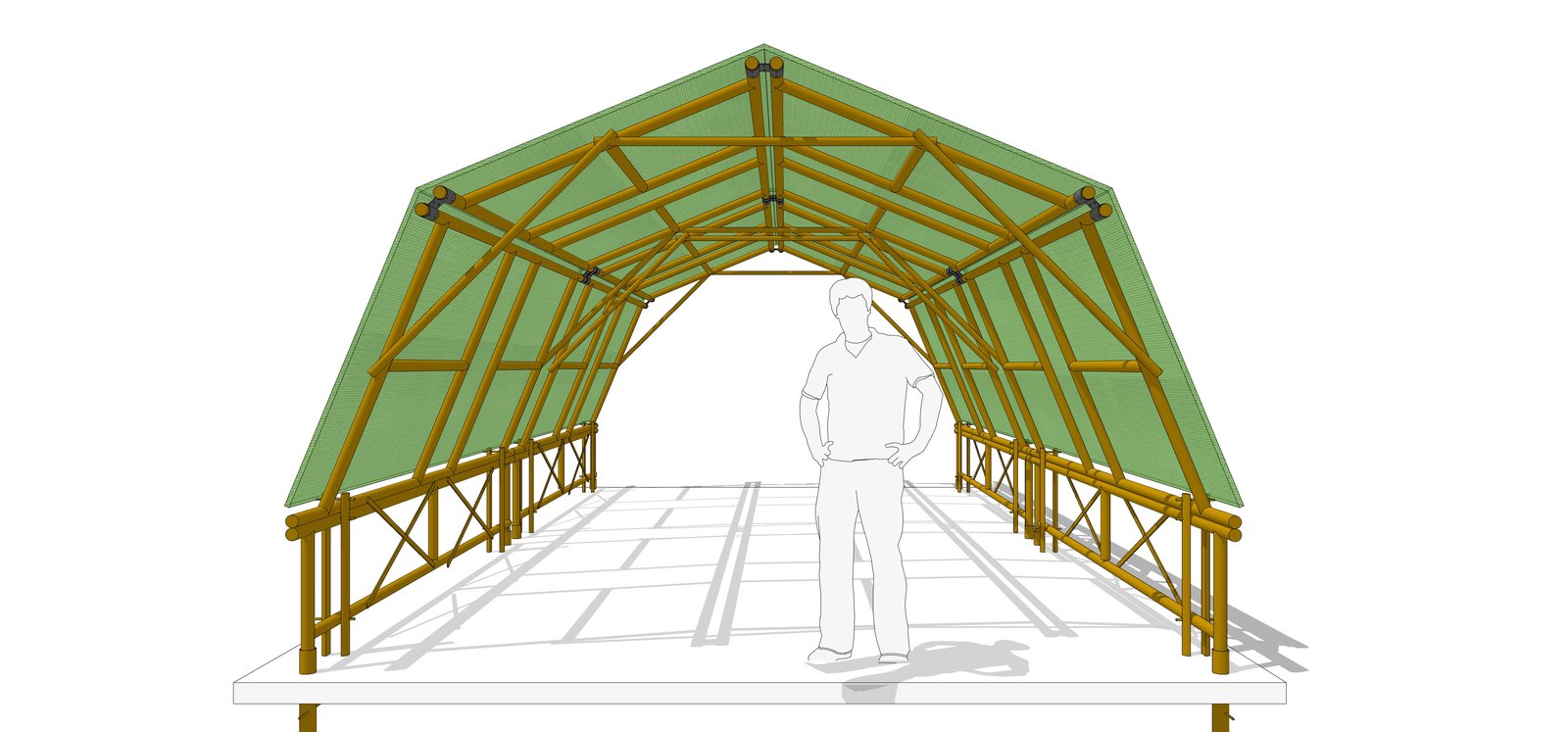

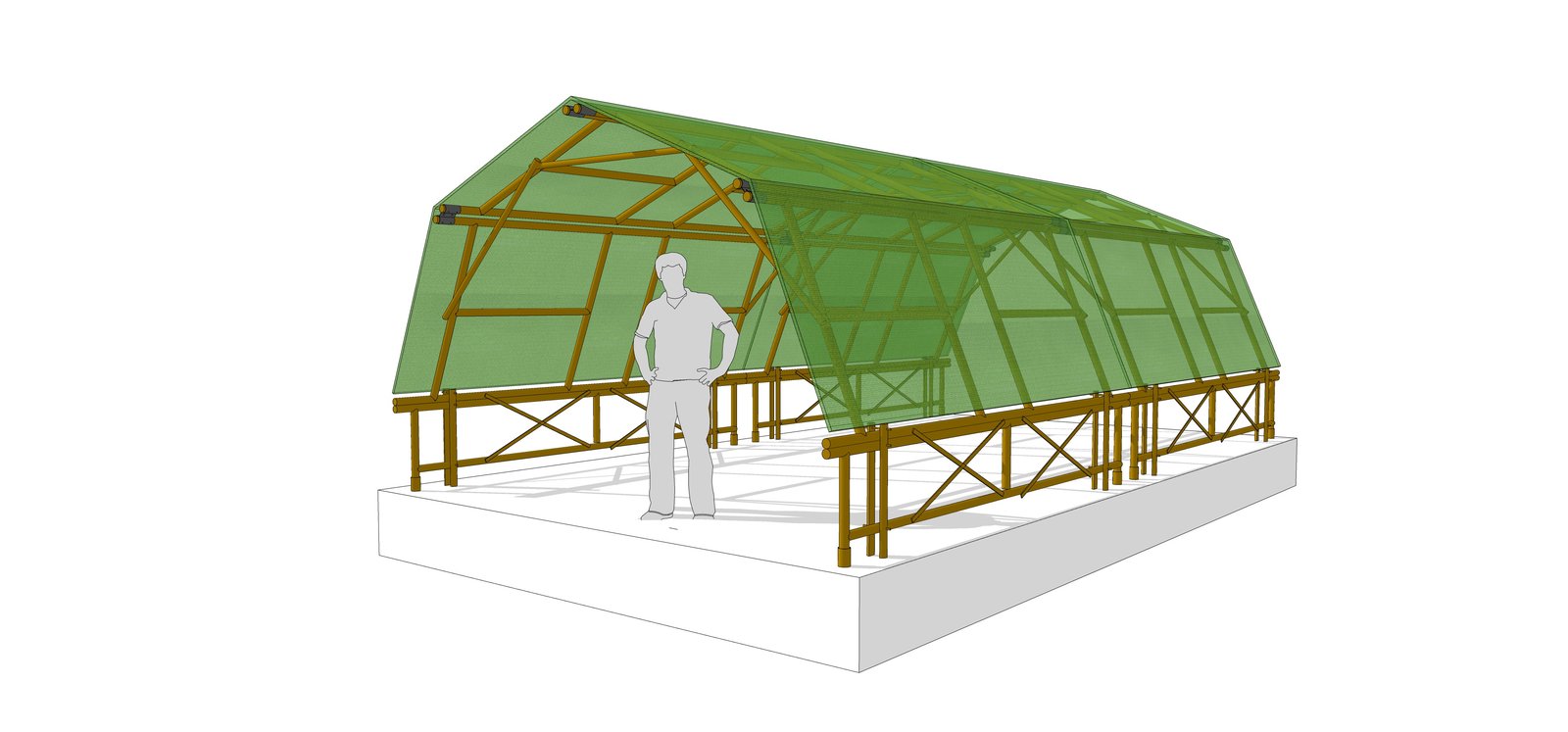

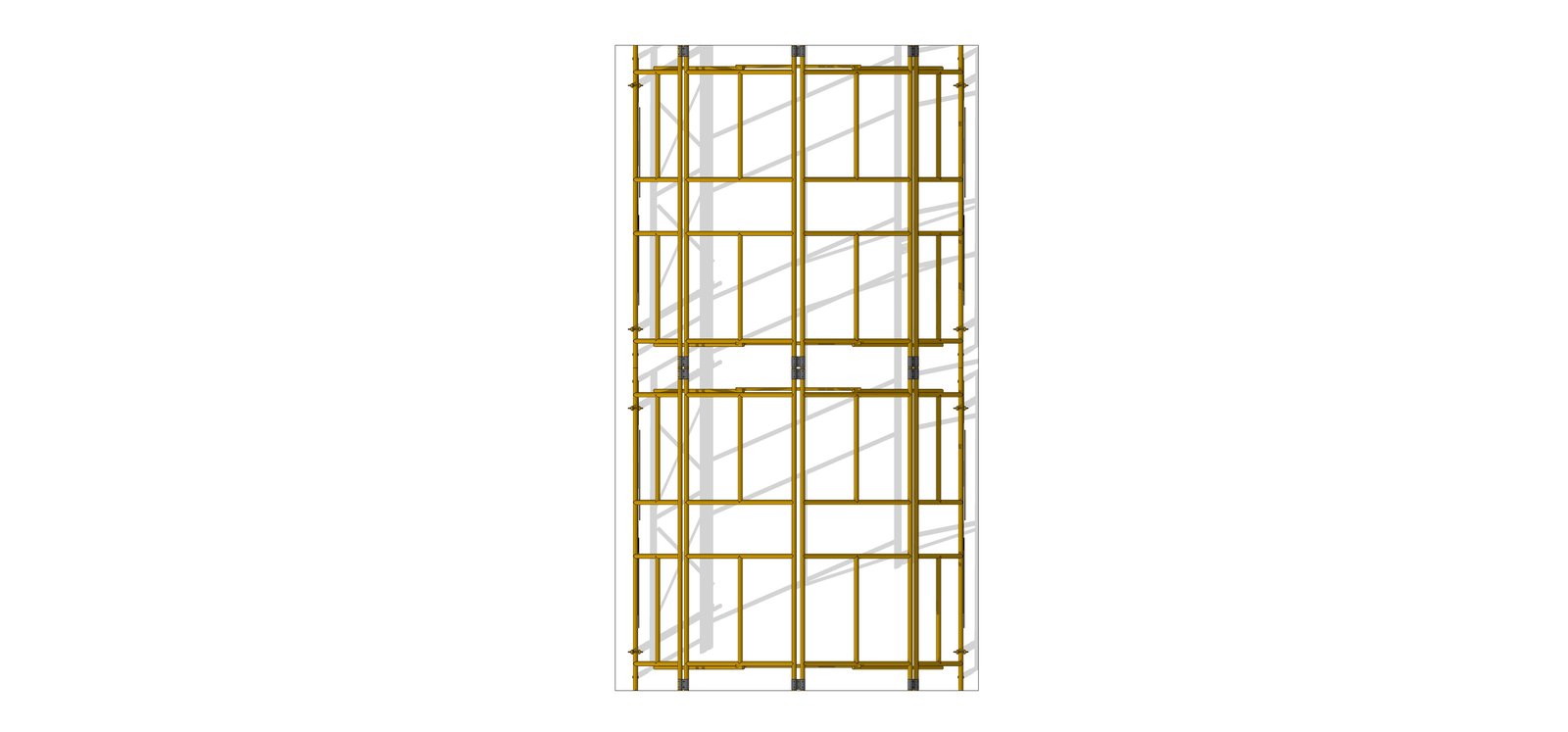

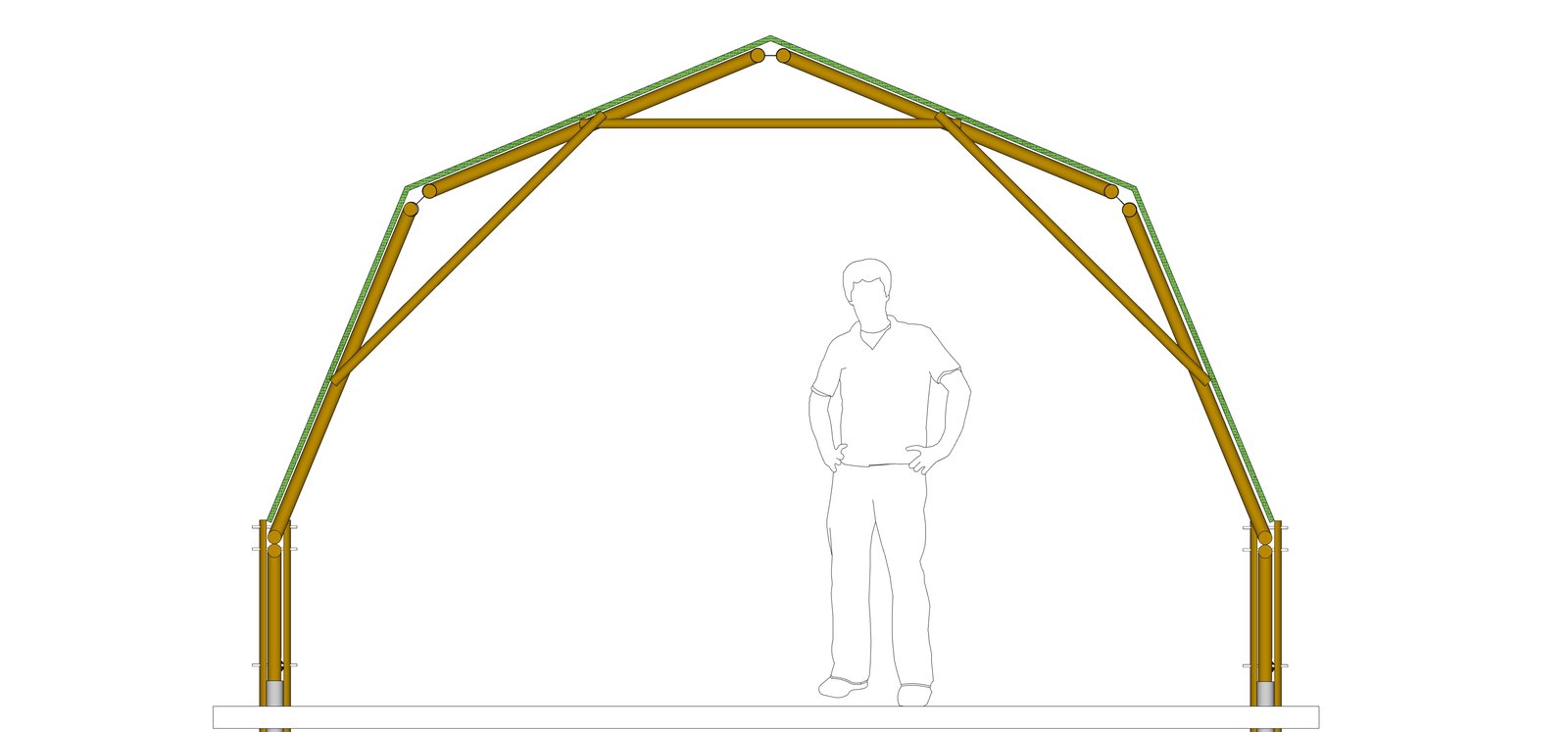

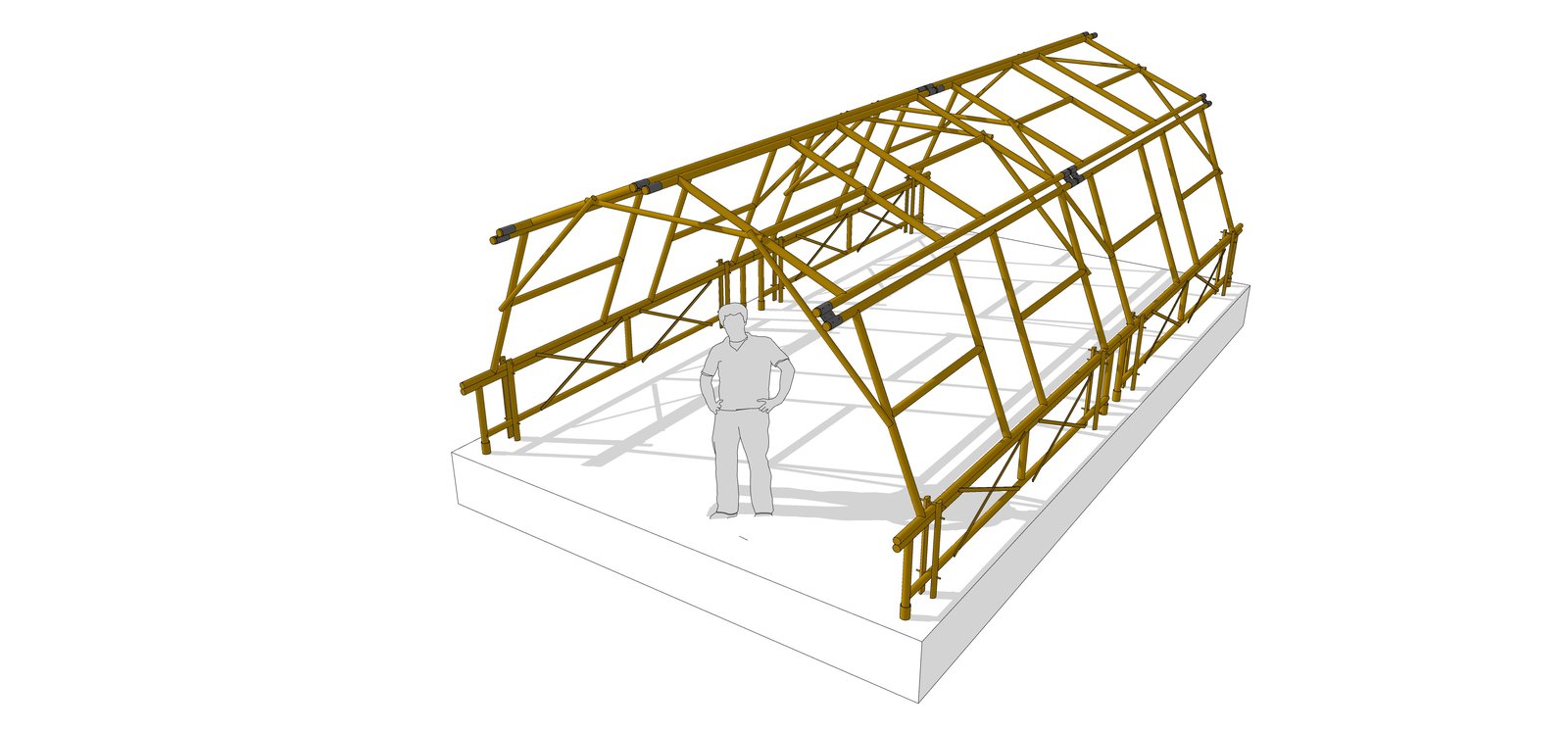

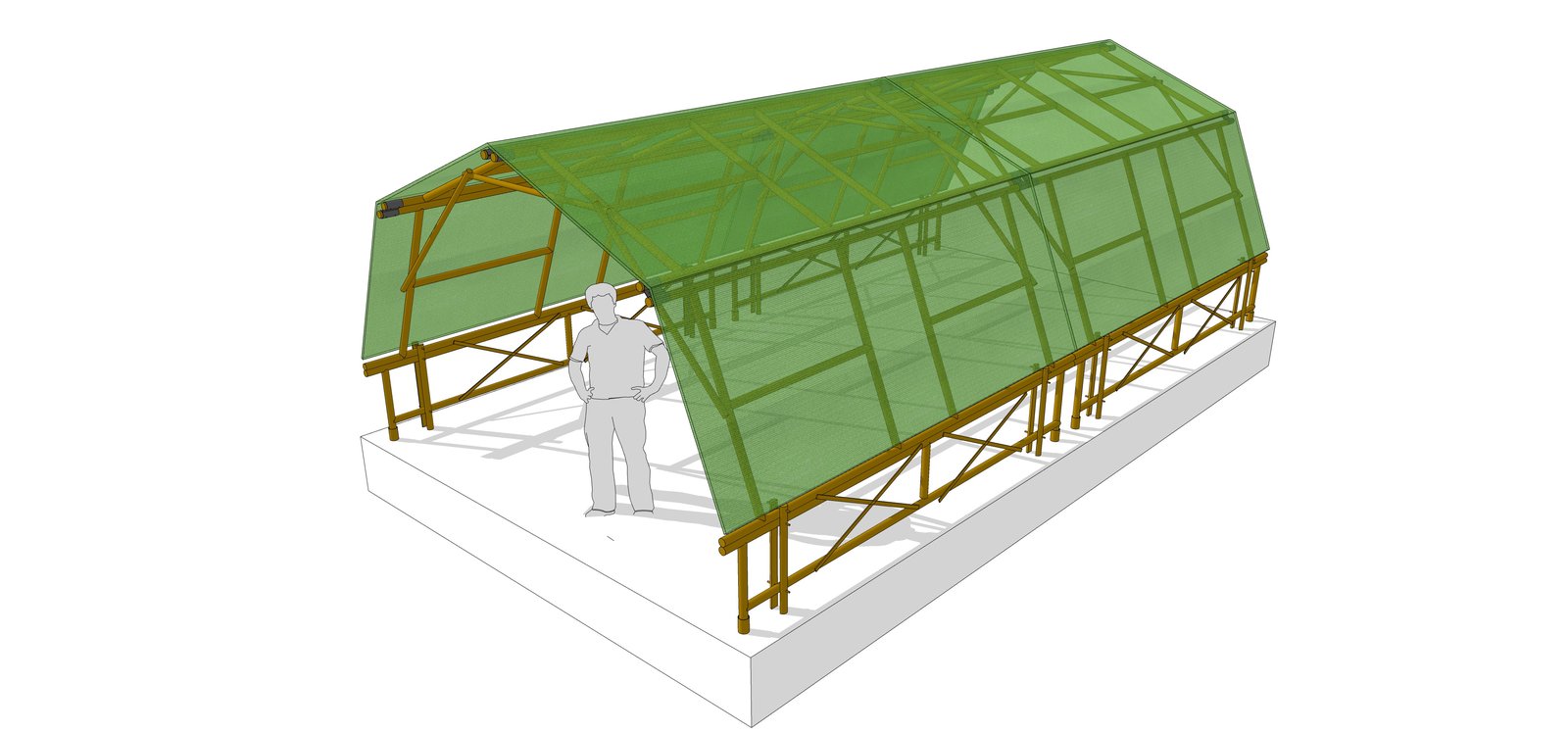

Panel Based — 12 ft Span
| Span Width | 12 ft (3.66 m) |
| Bay Length | 12 ft per module |
| Ridge Height | 8 ft |
| Net Type | 50–75% shade net, UV-stabilised, durable HDPE |
| Wind Load Capacity | 50–60 km per hour |
Span 16 ft

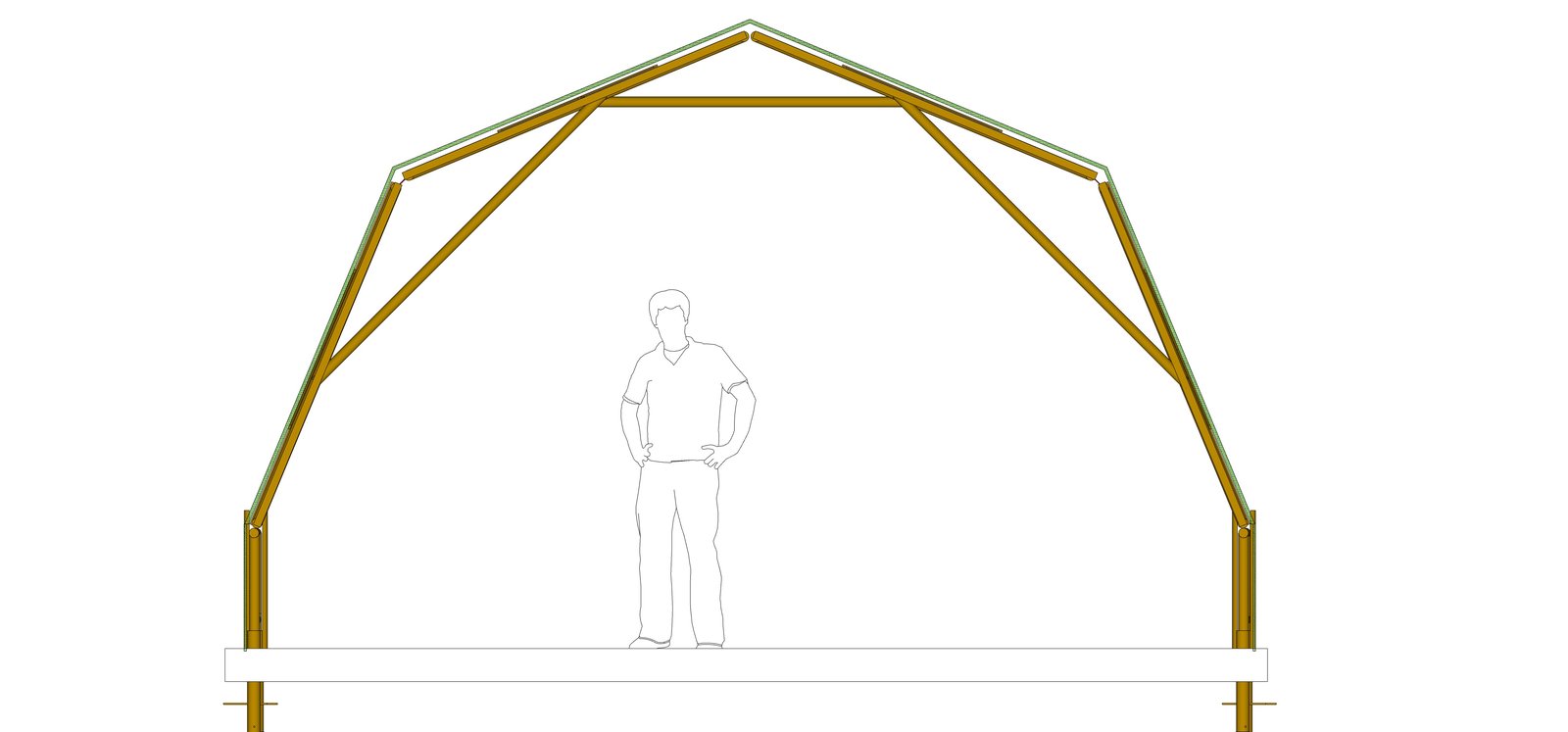

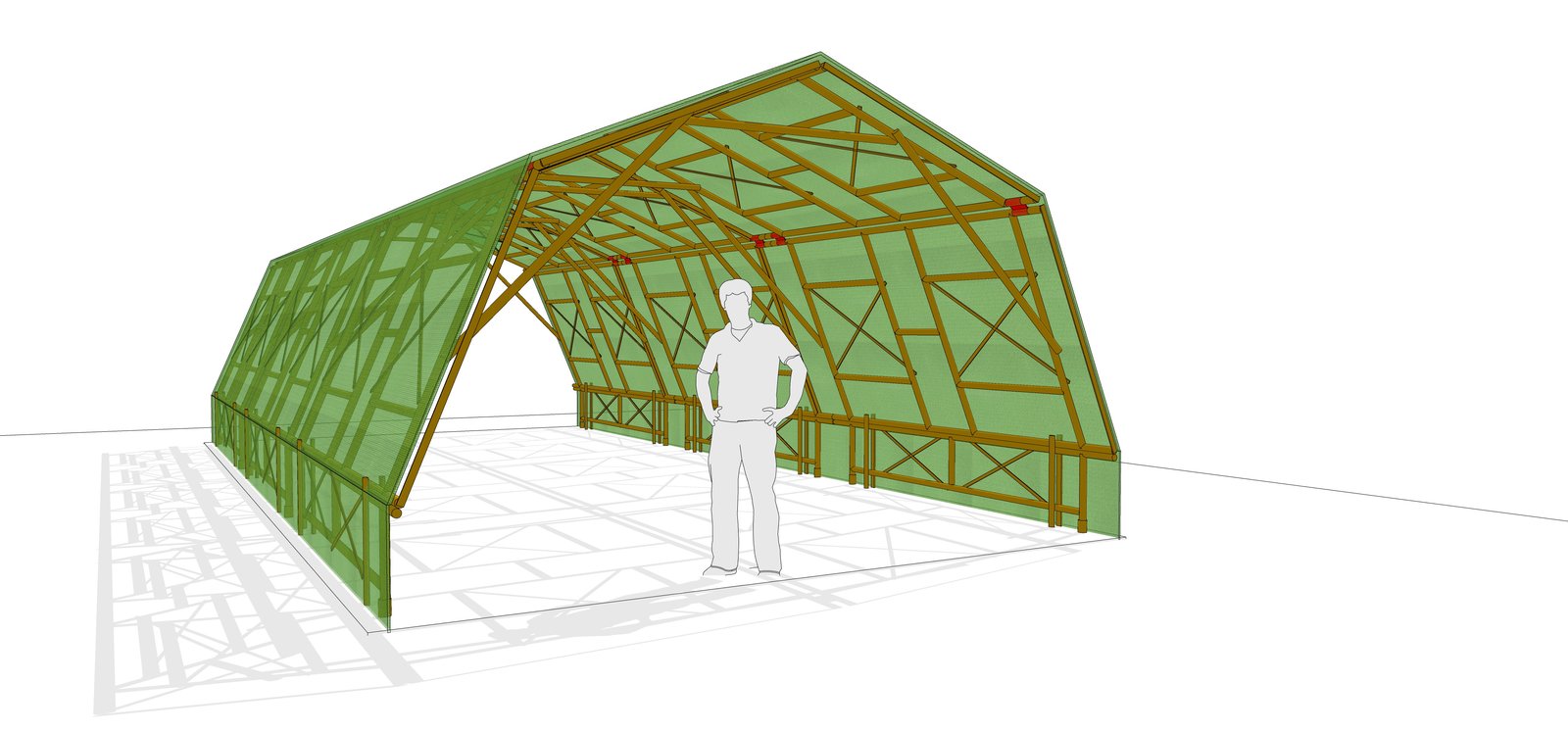

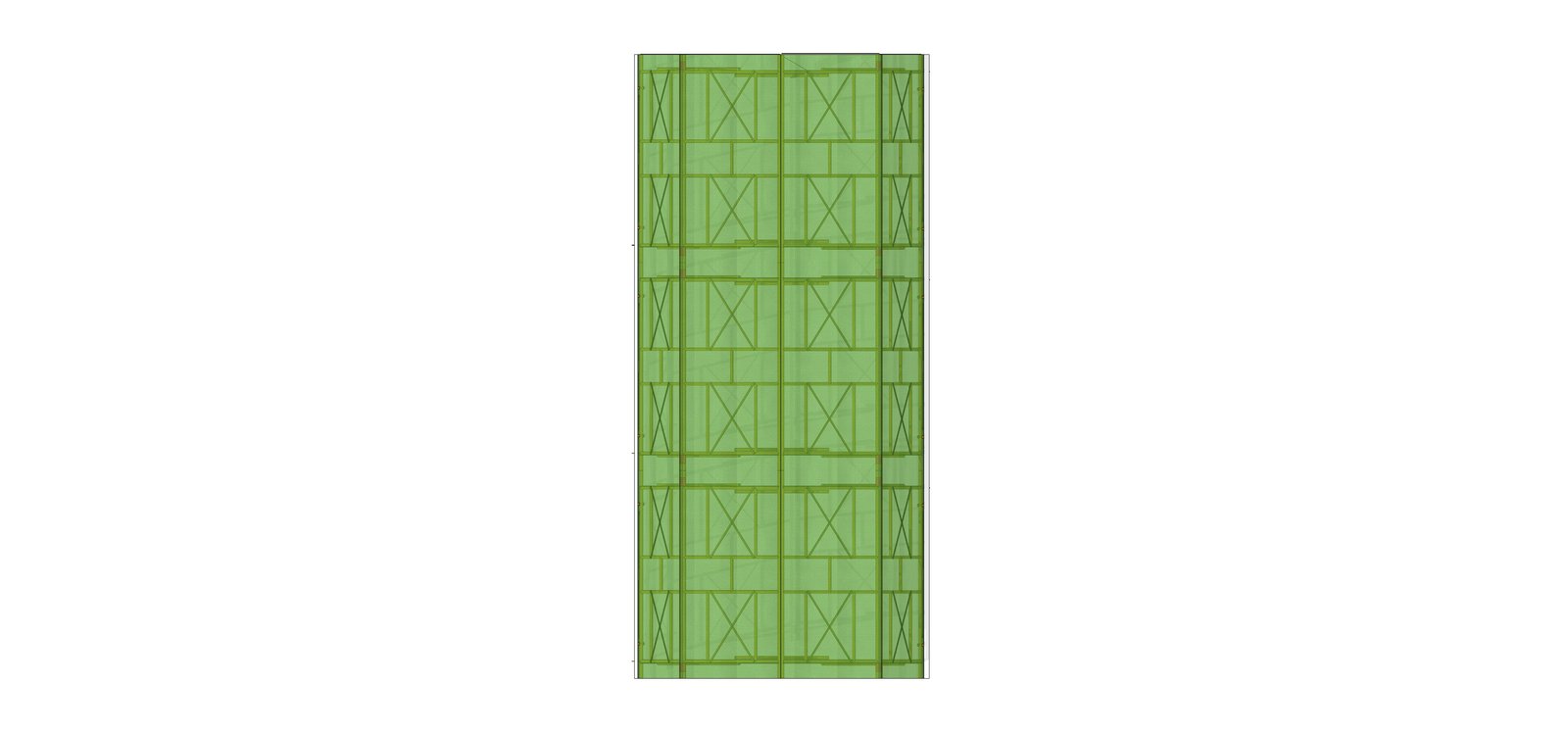

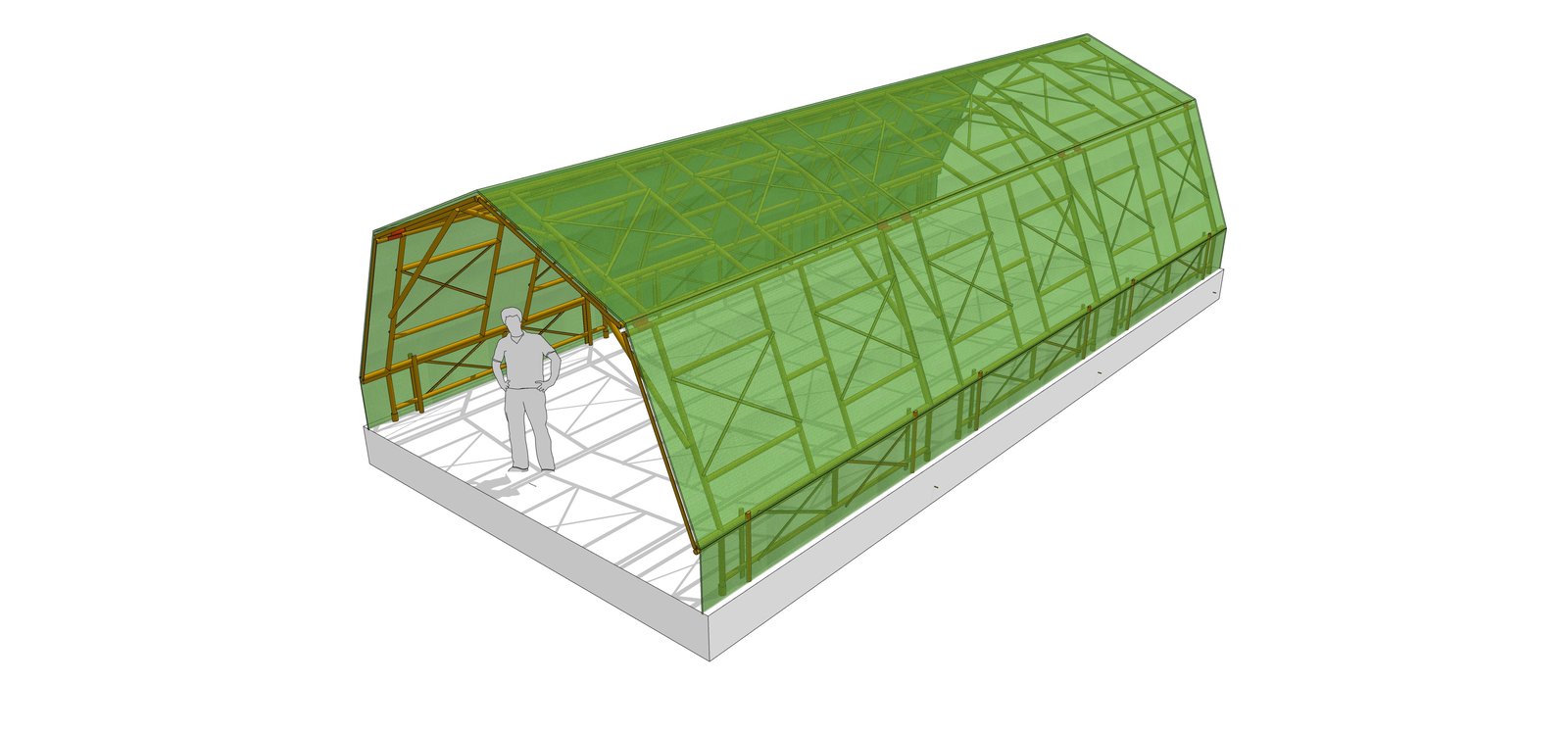

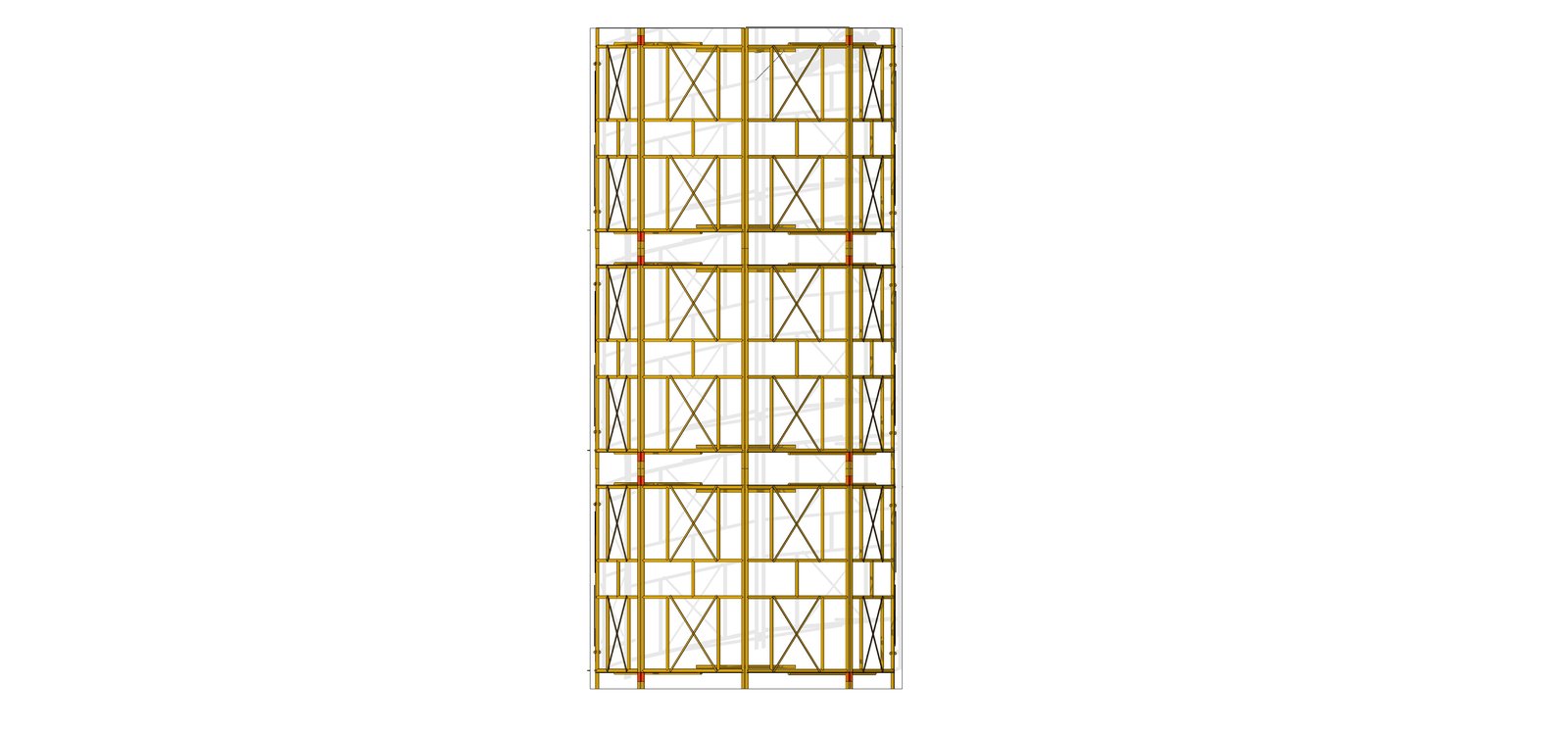

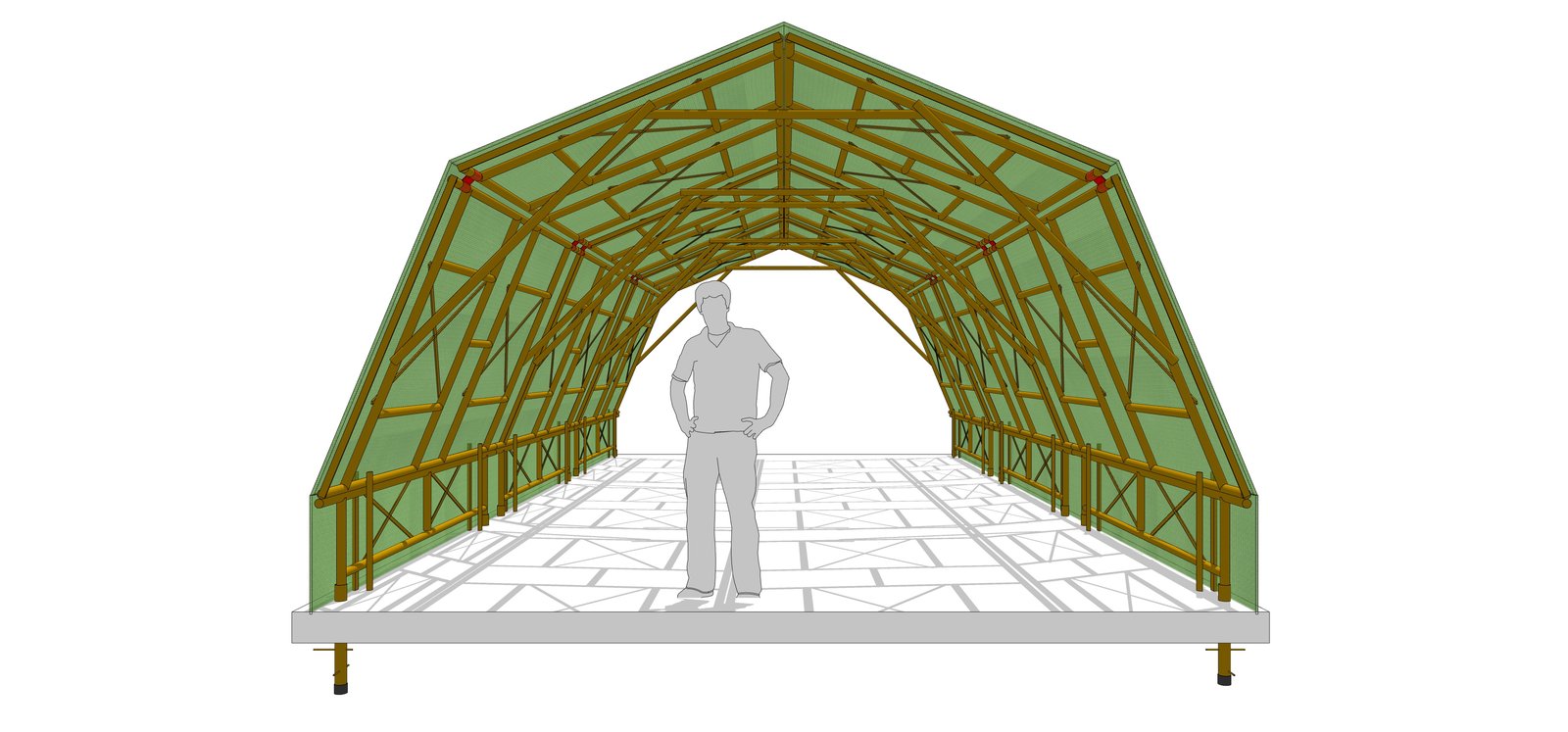

Panel Based — 16 ft Span
| Span Width | 16 ft (4.88 m) |
| Bay Length | 12 ft per module |
| Ridge Height | 10 ft |
| Column Spacing | [ X ] ft c/c |
| Net Type | 50–75% shade net, UV-stabilised, durable HDPE |
| Wind Load Capacity | 50–60 km per hour |
Span 24 ft

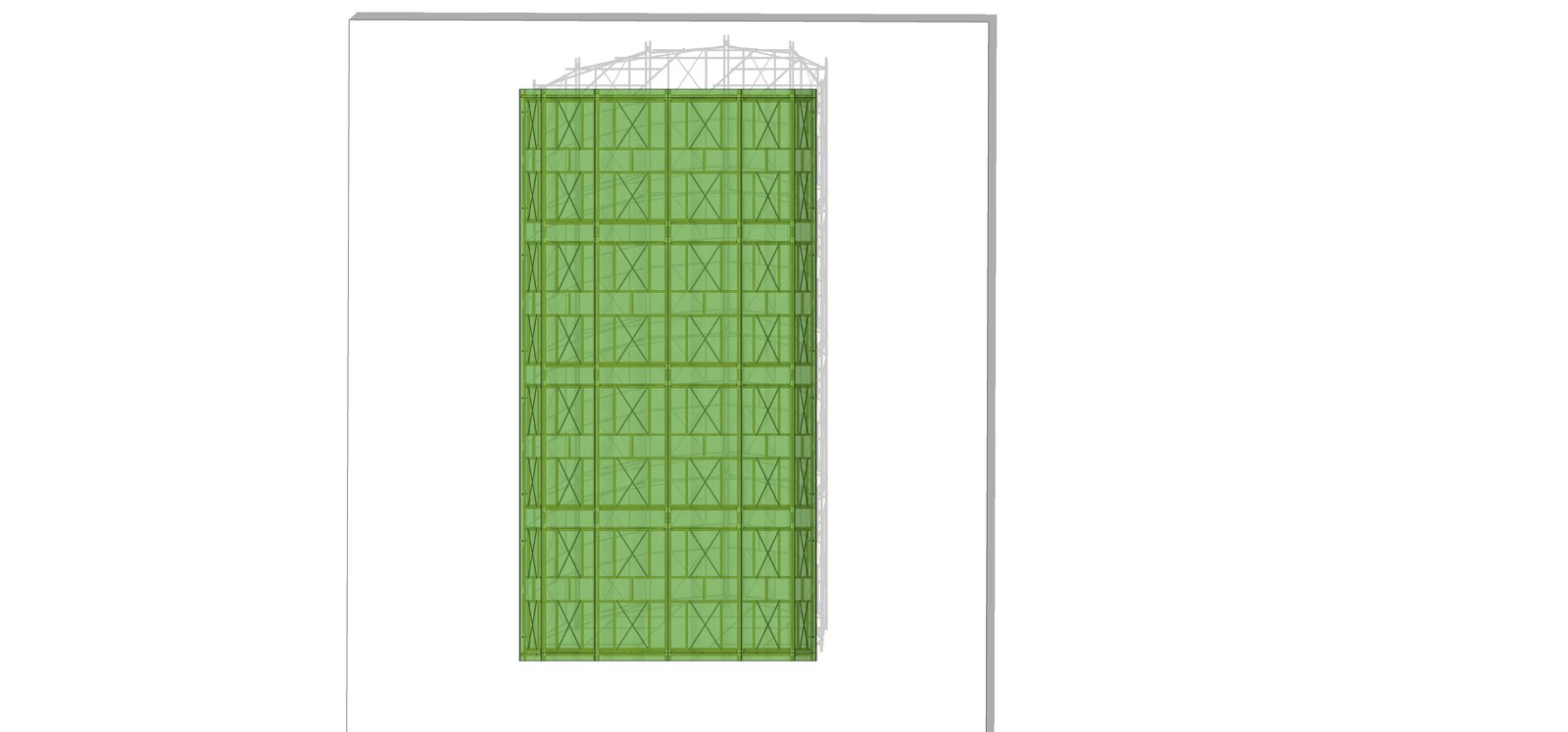

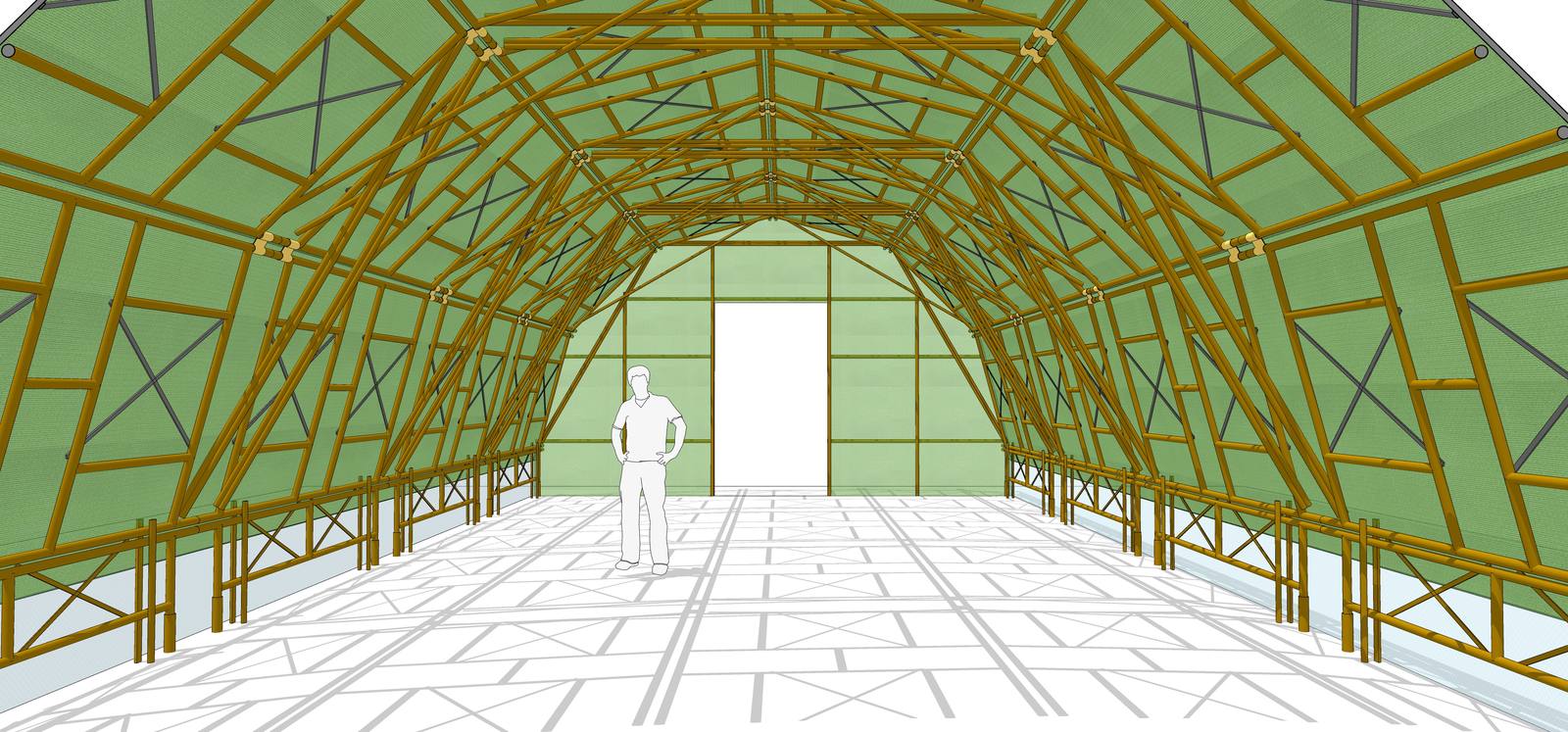

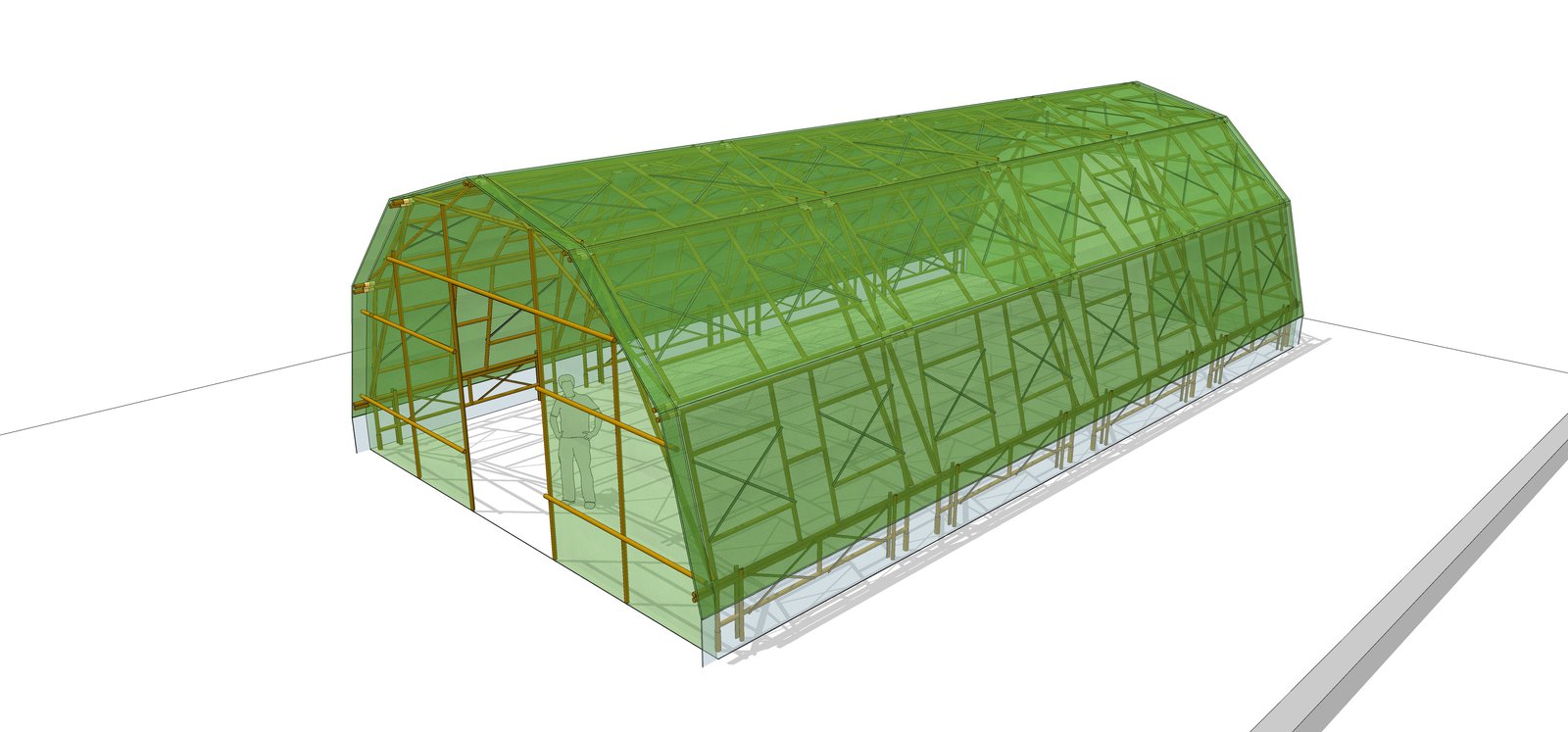

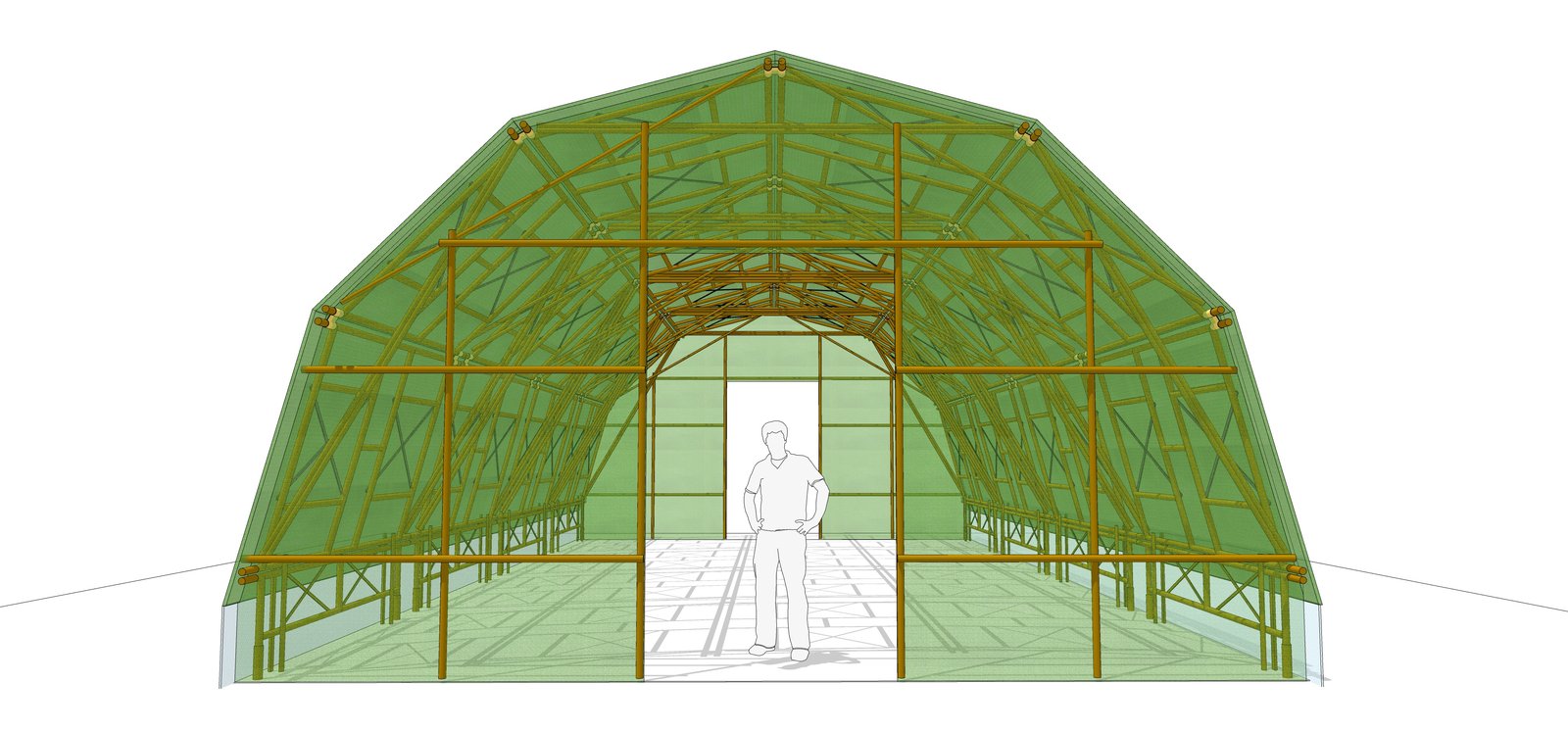

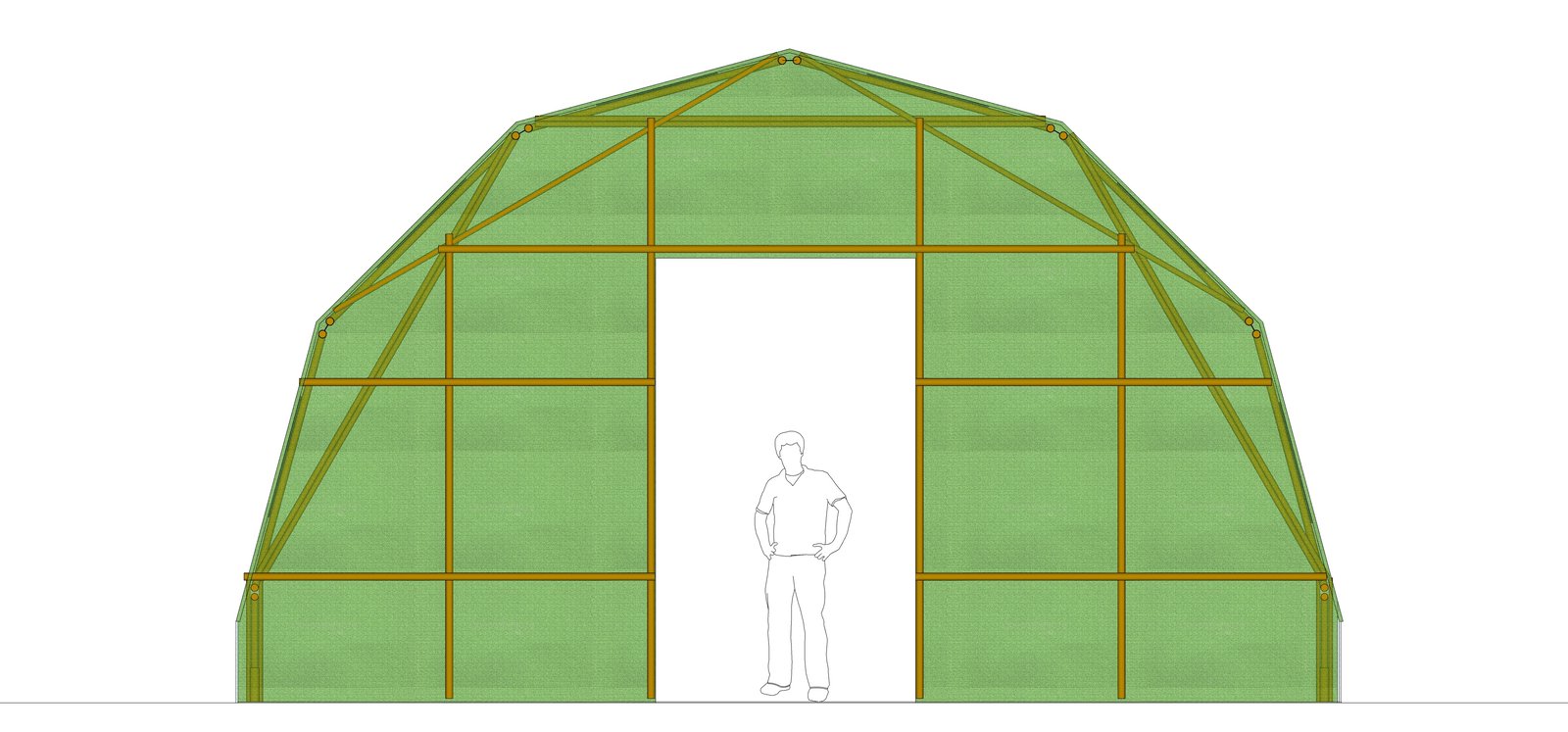

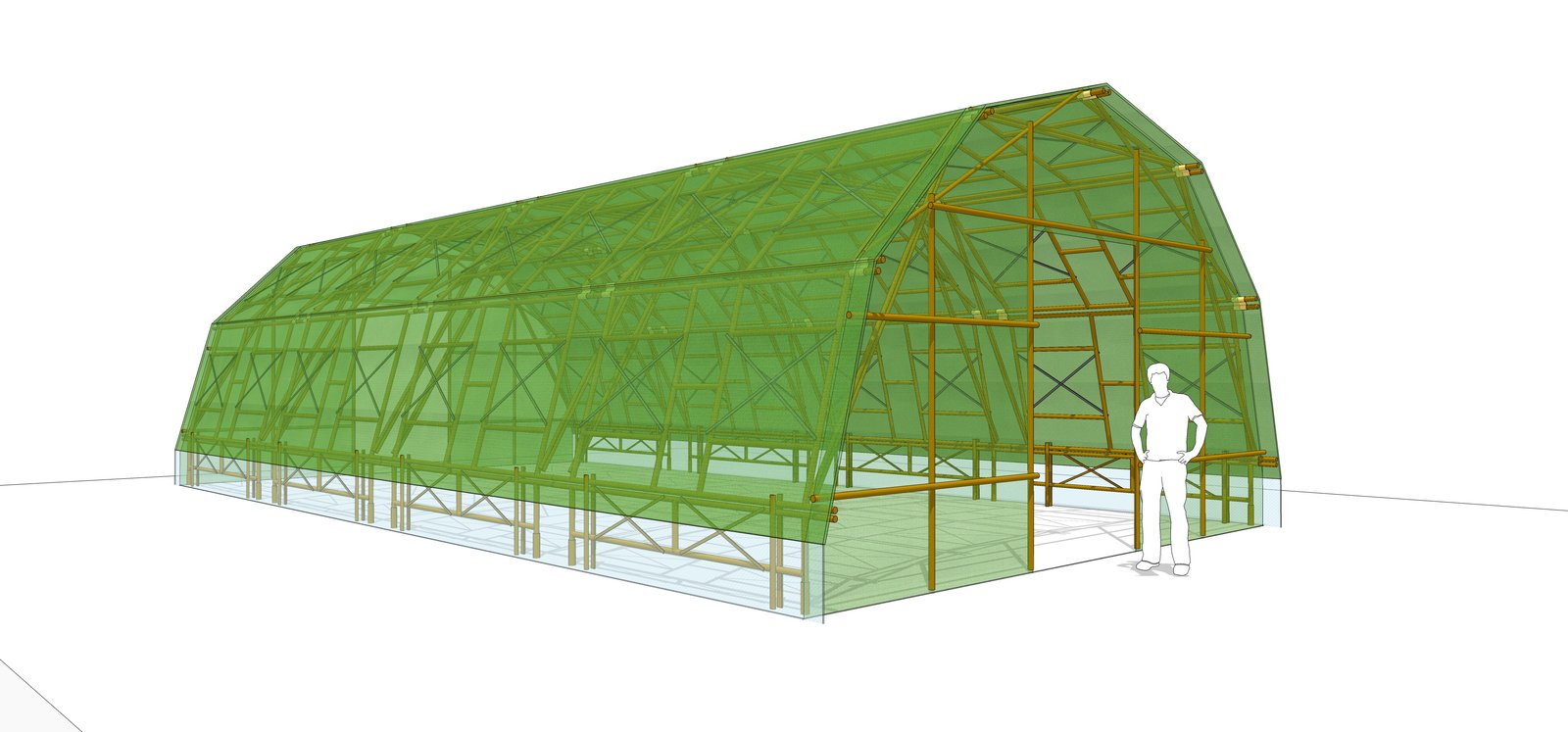

Panel Based — 24 ft Span
| Span Width | 24 ft (7.32 m) |
| Bay Length | 12 ft per module |
| Ridge Height | 14 ft |
| Column Spacing | [ X ] ft c/c |
| Net Type | 50–75% shade net, UV-stabilised, durable HDPE |
| Wind Load Capacity | 50–60 km per hour |
Truss Based Poly-Shed Net
Pre-fabricated bamboo truss frames for larger clear-span structures without internal columns.
Span 20 ft

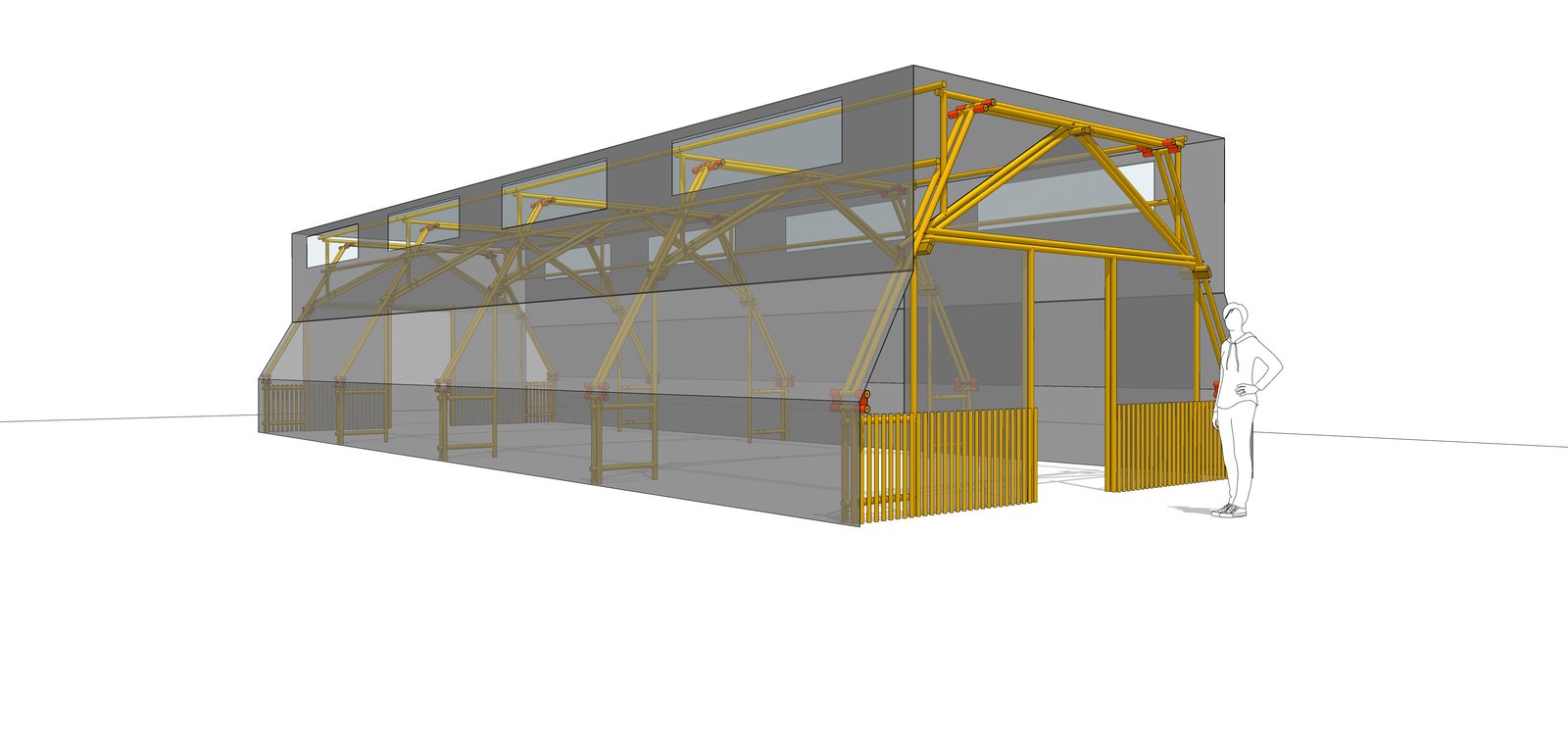

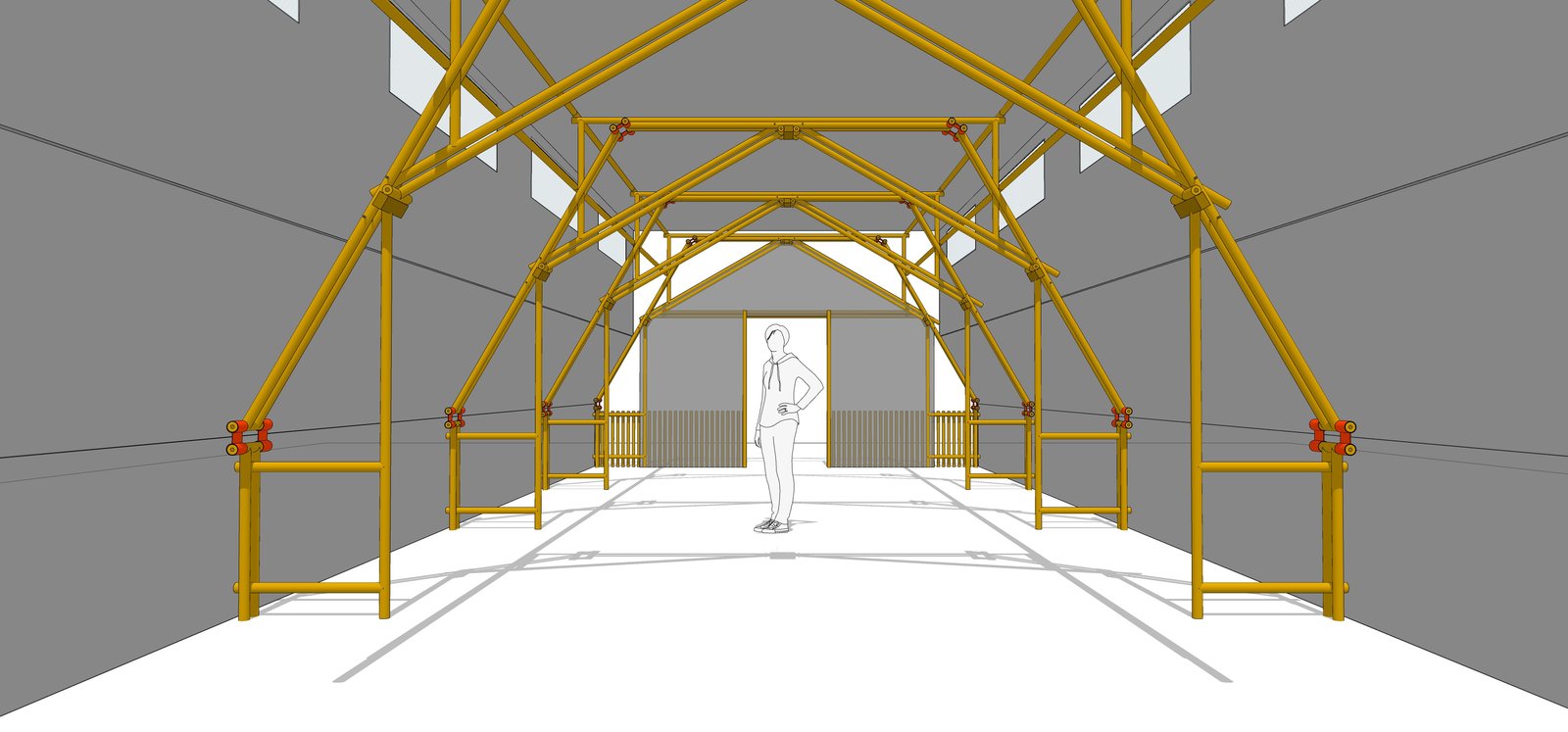

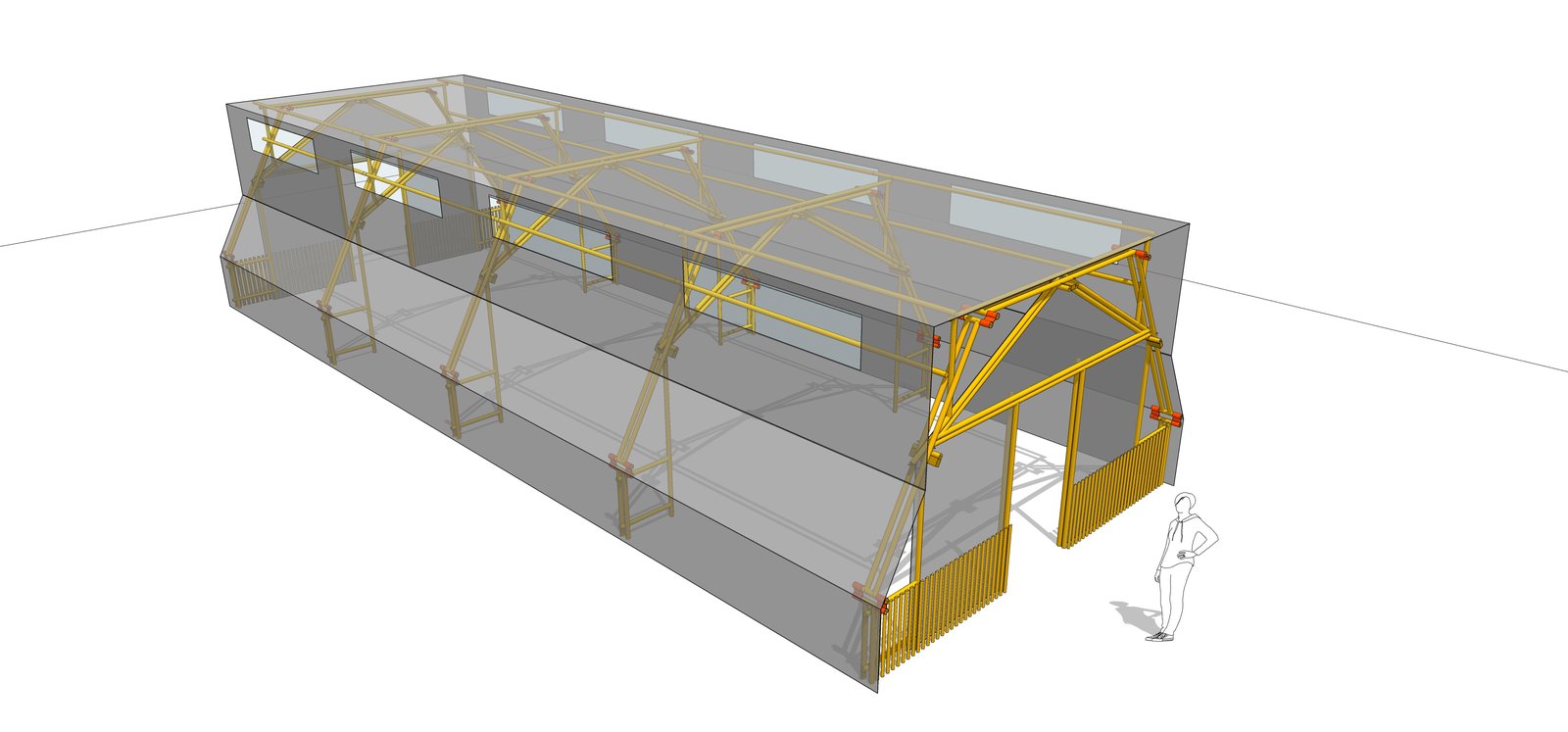

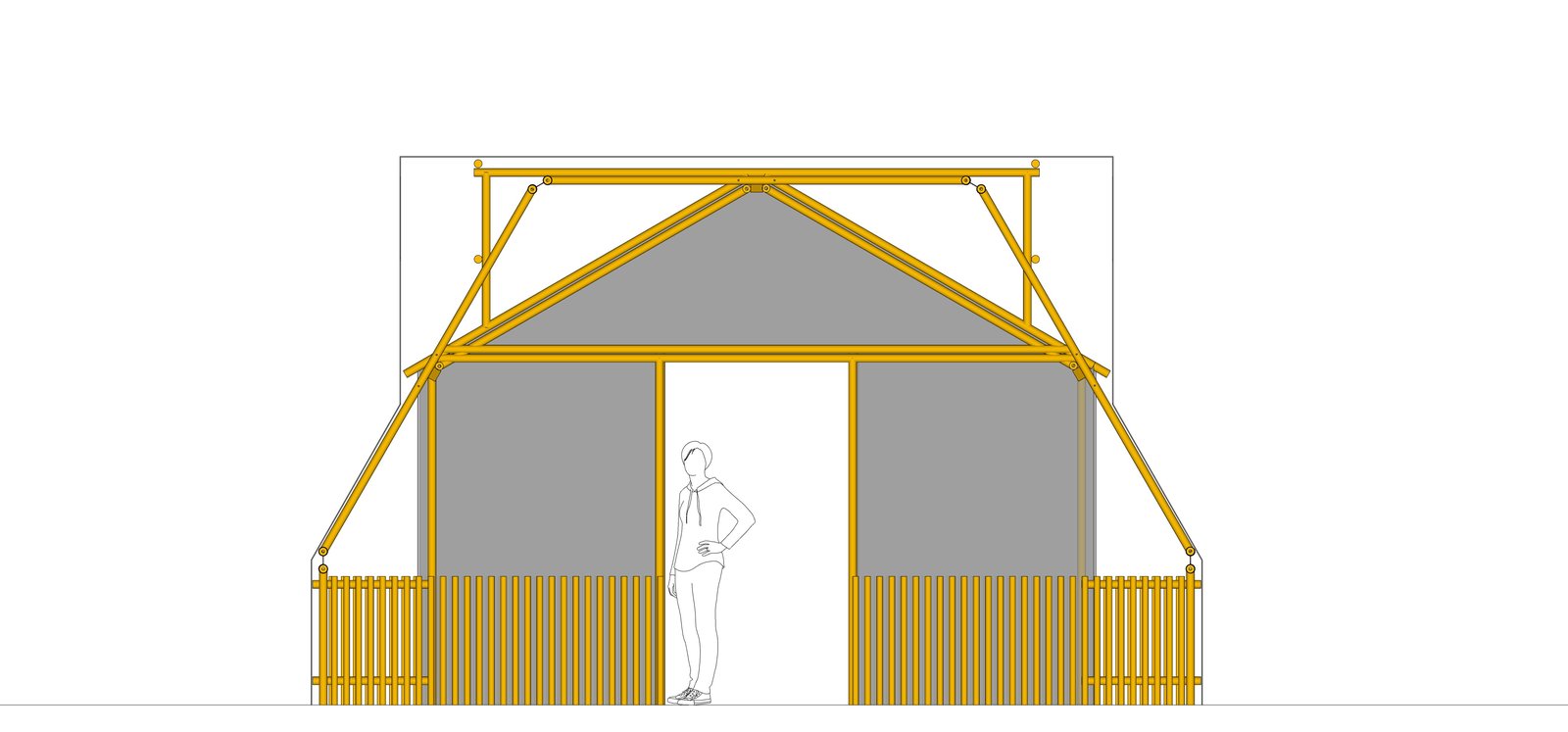

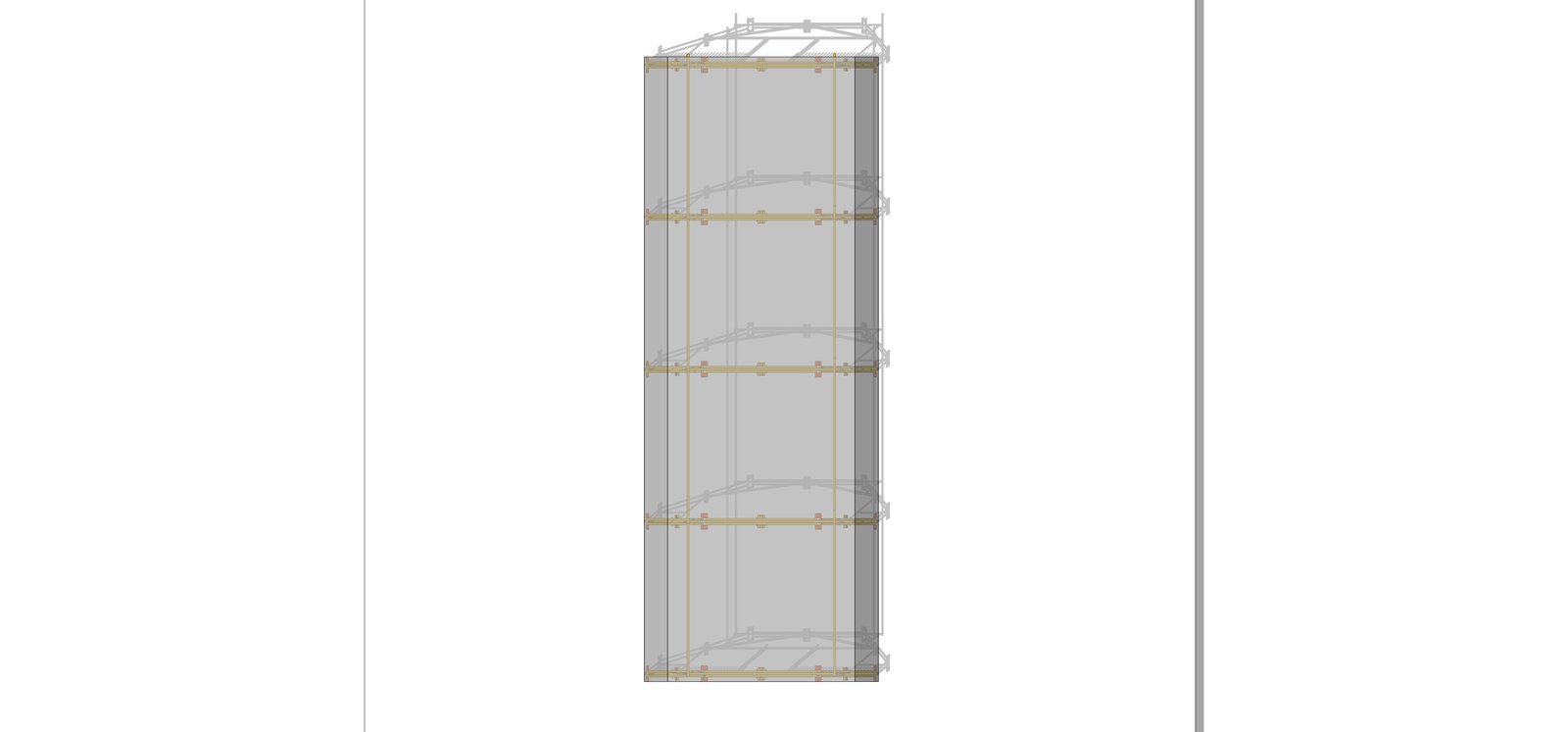

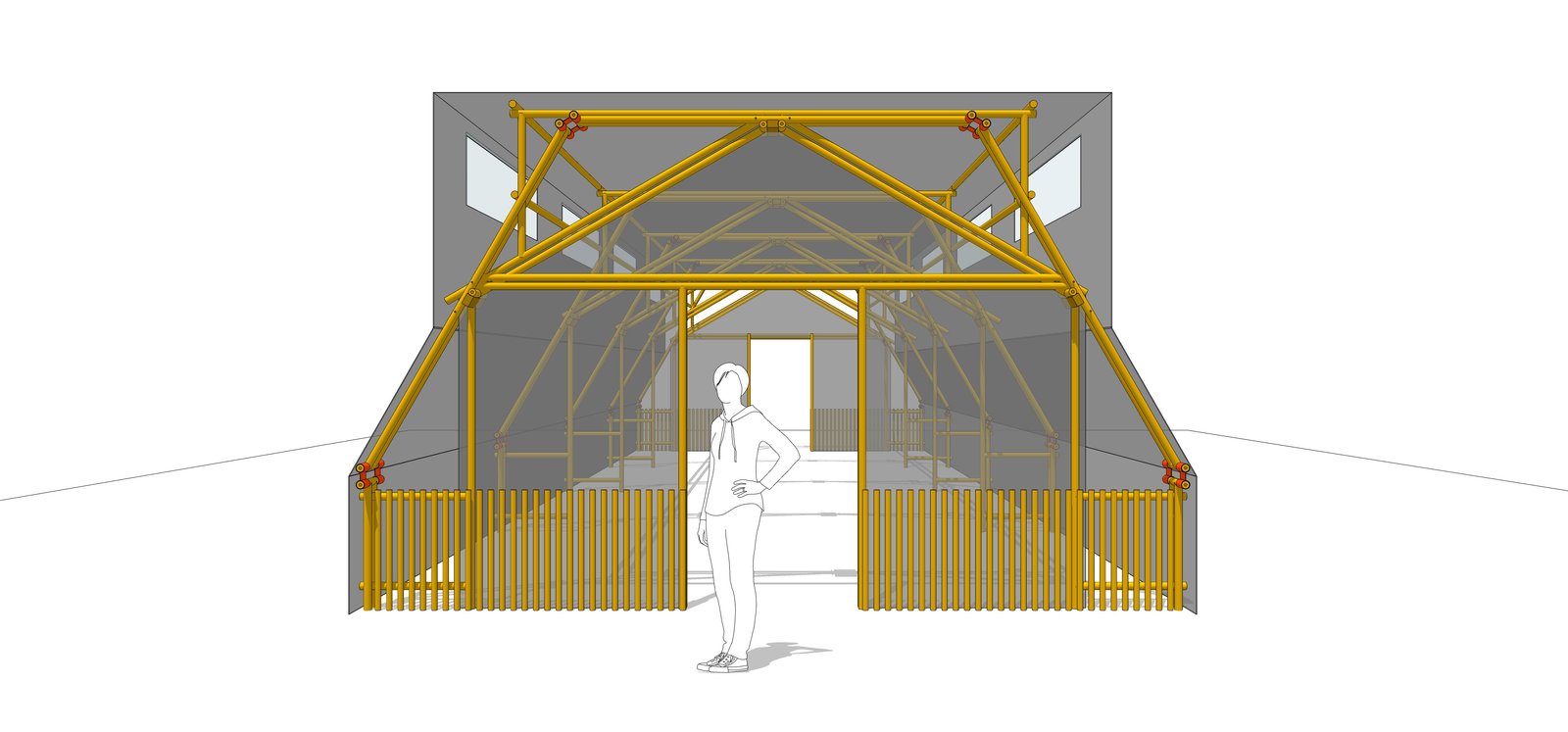

Truss Based — 20 ft Span Flat Top
Flat top truss configuration for compact spaces. Vegetable farming / nursery use.
| Clear Span Width | 20 ft |
| Bay Length | 12 ft per module |
| Ridge Height | 12 ft |
| Net Type | 50–75% shade net, UV-stabilised, durable HDPE |
| Wind Load Capacity | 50–60 km per hour |
Span 24 ft

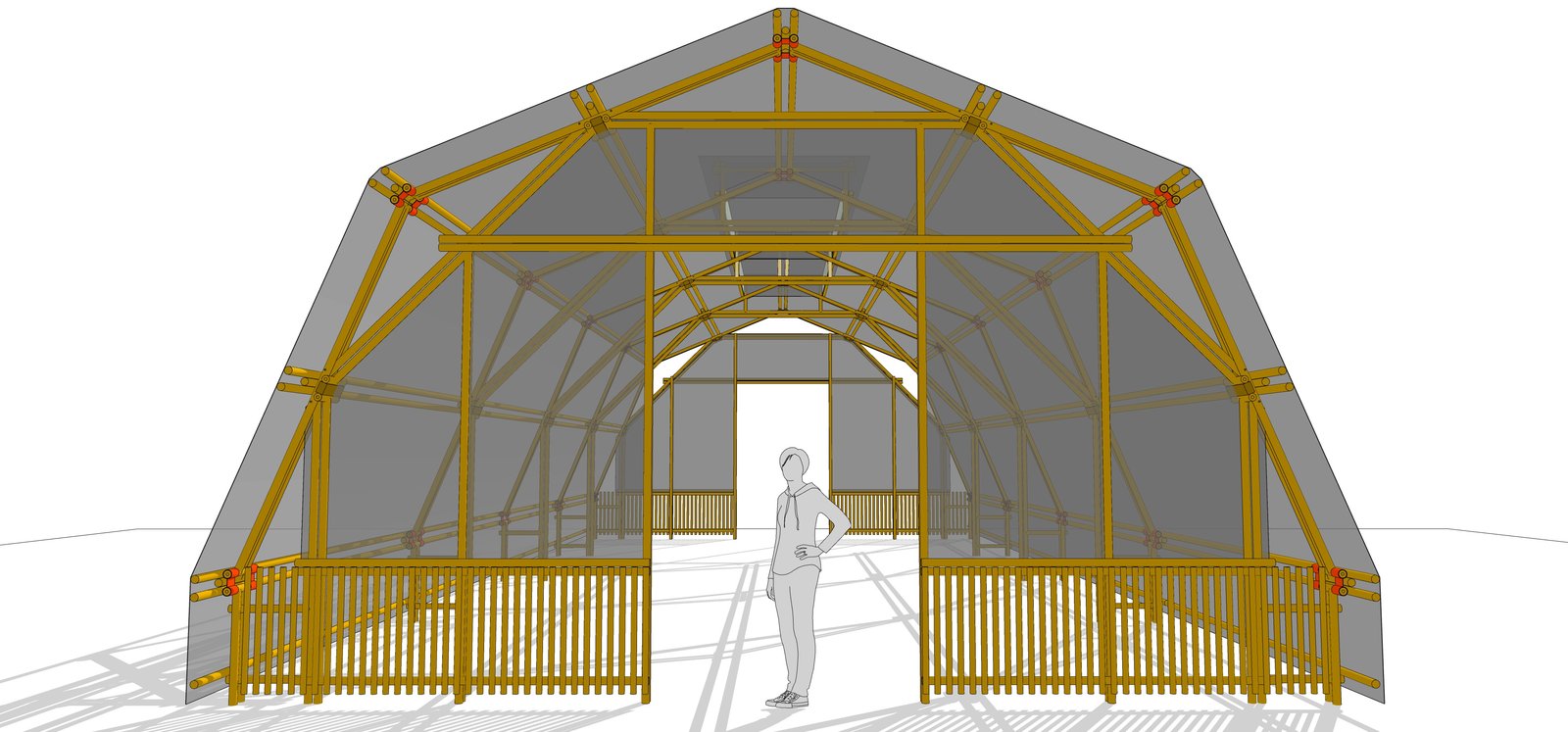

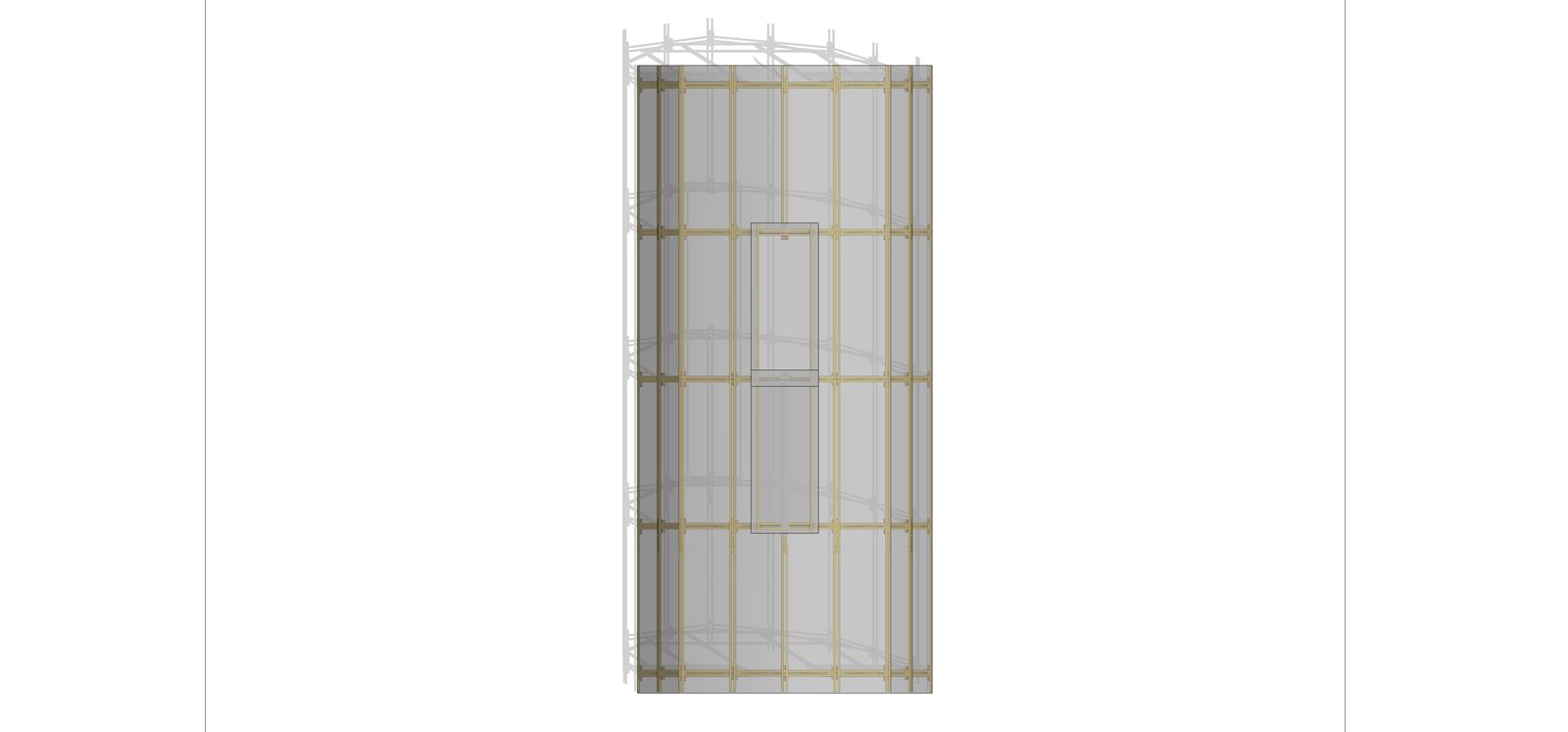

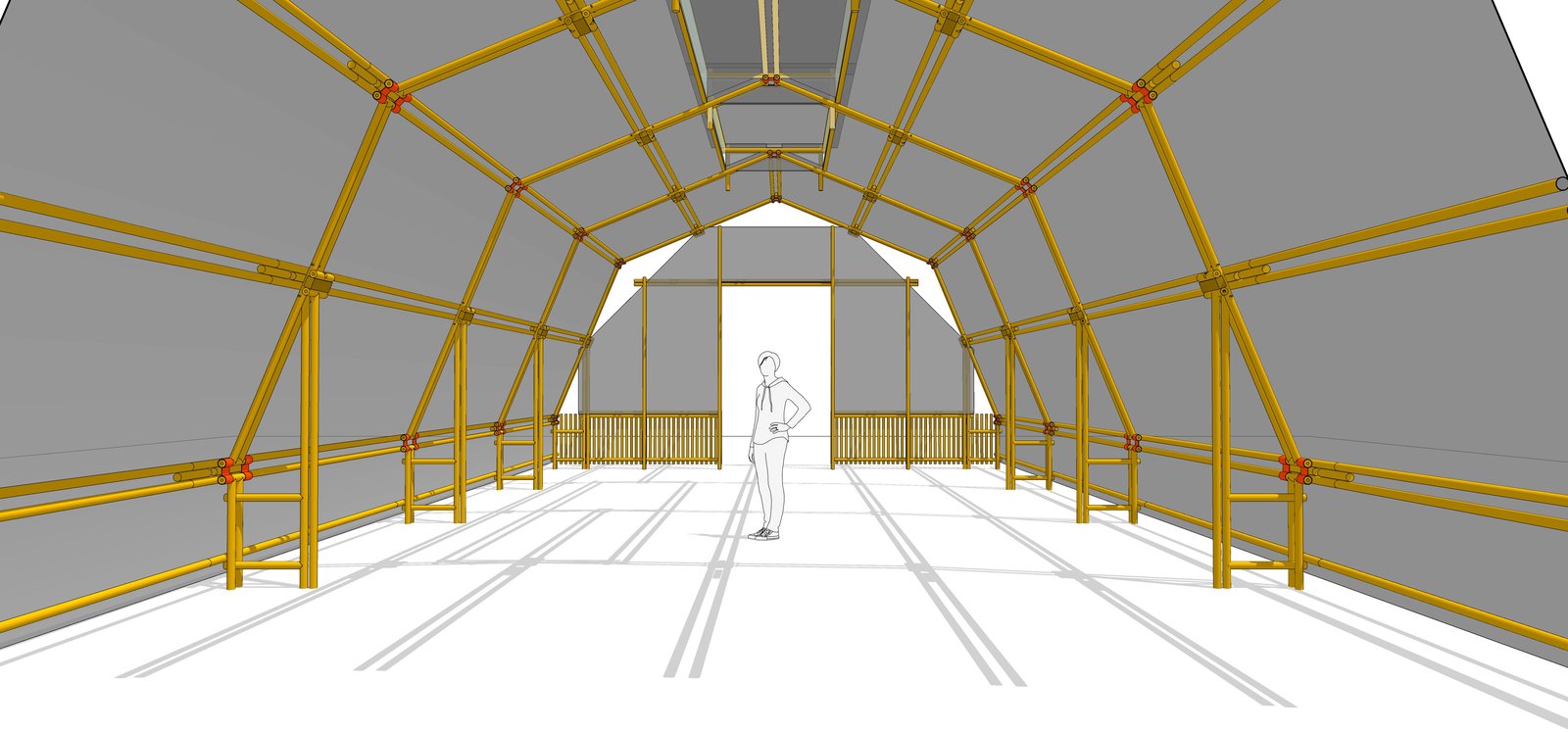

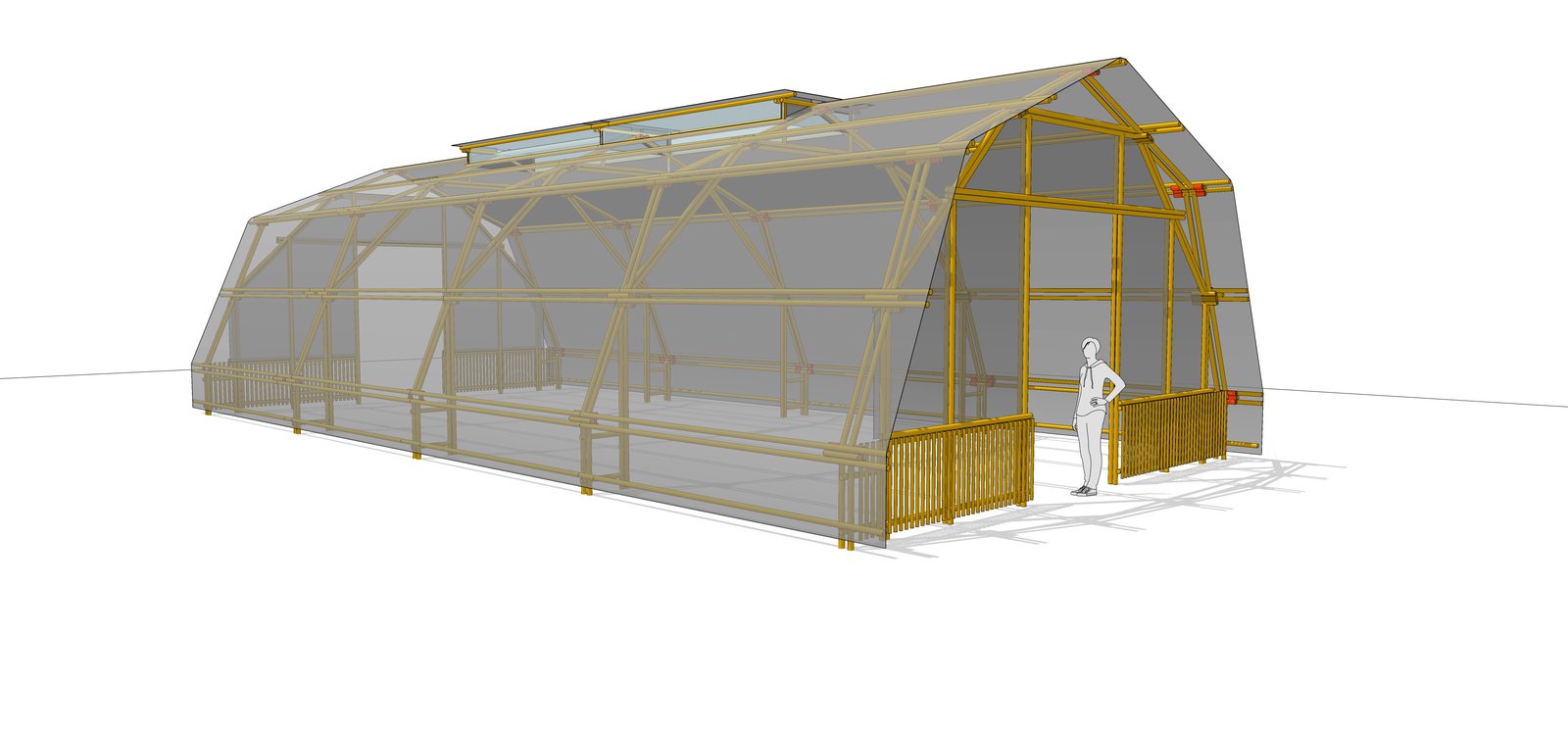

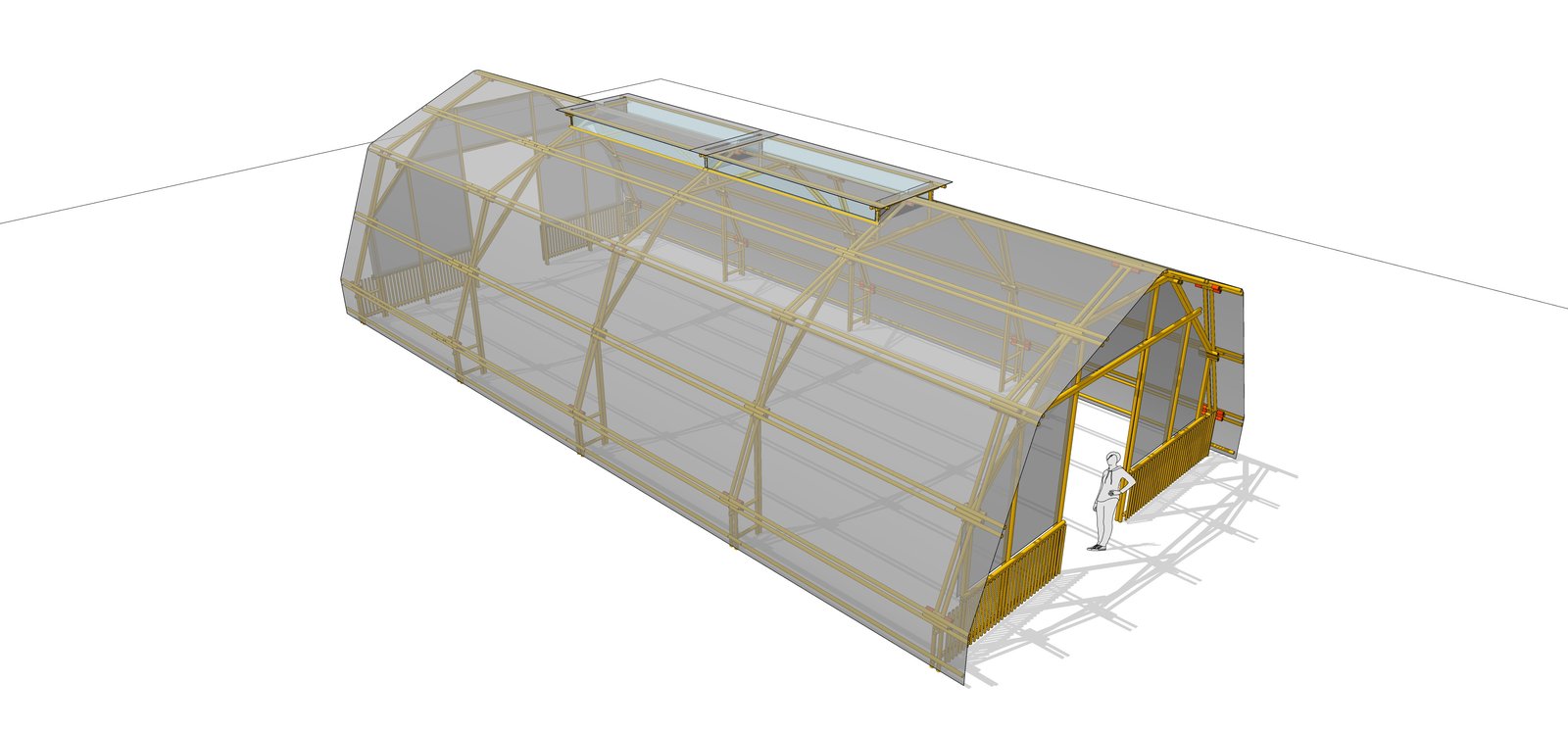

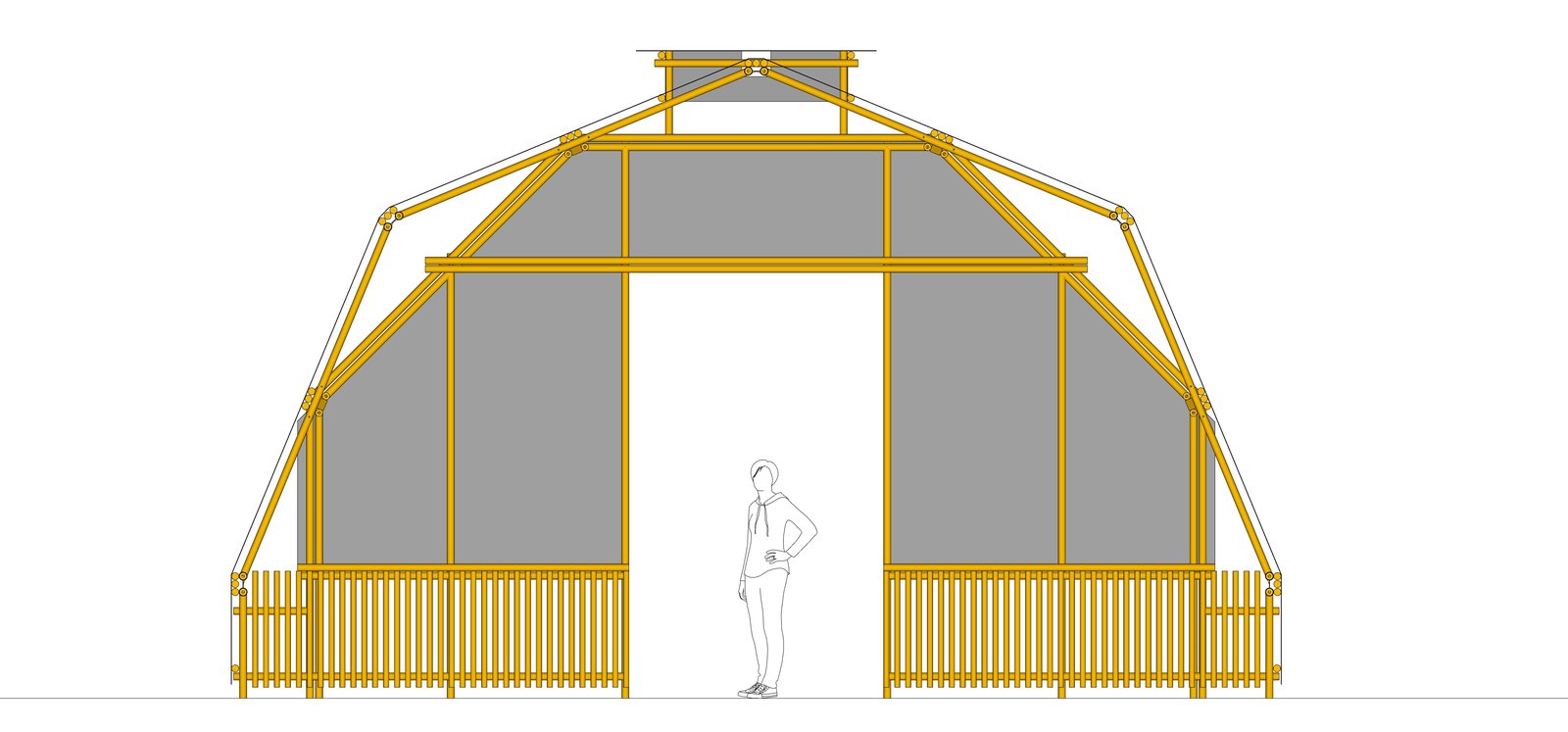

Truss Based — 24 ft Span
Clear internal span with no mid-span columns. Ideal for larger growing beds or machinery access.
| Clear Span Width | 24 ft |
| Bay Length | 12 ft per module |
| Ridge Height | 12 ft |
| Net Type | 50–75% shade net, UV-stabilised, durable HDPE |
| Wind Load Capacity | 50–60 km per hour |
Span 36 ft

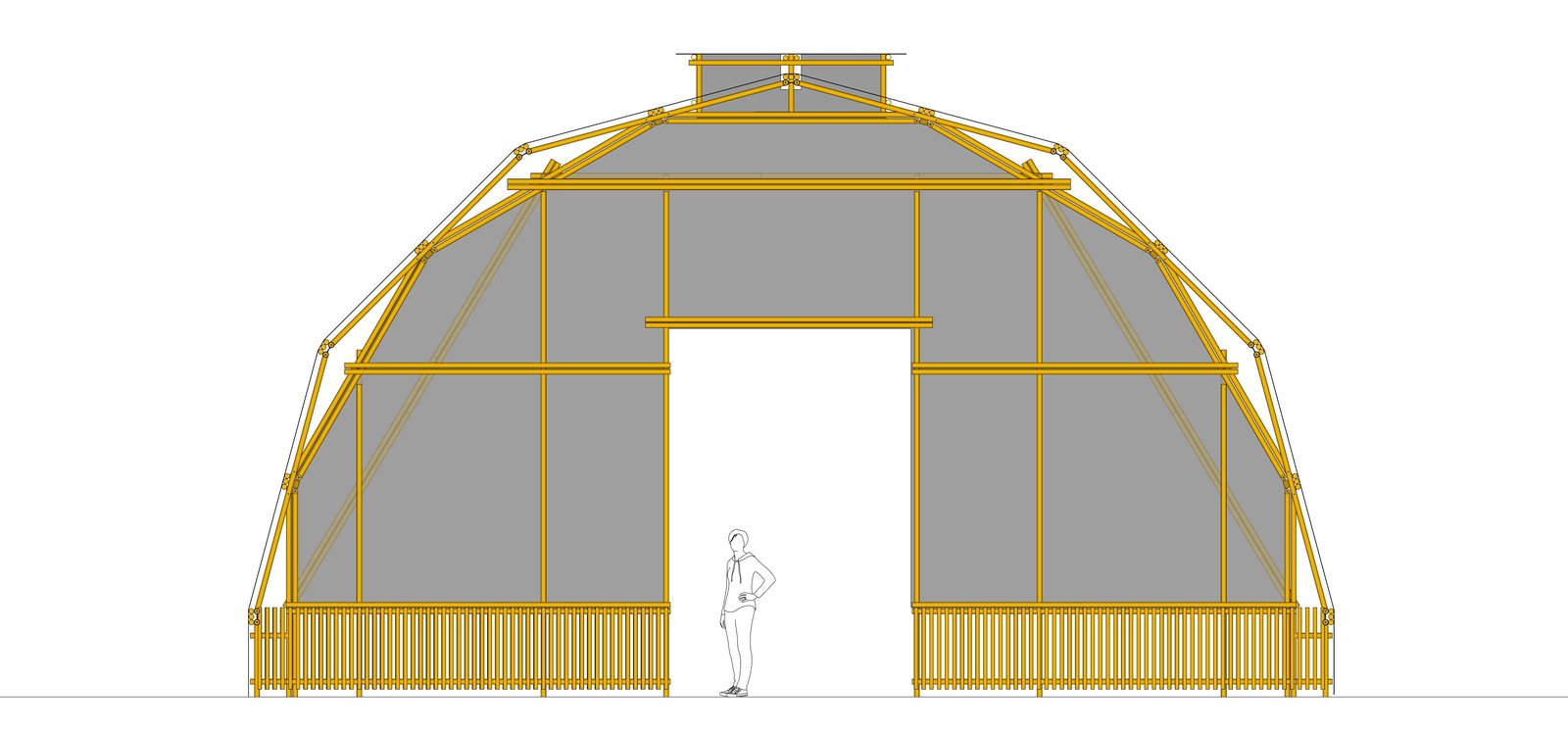

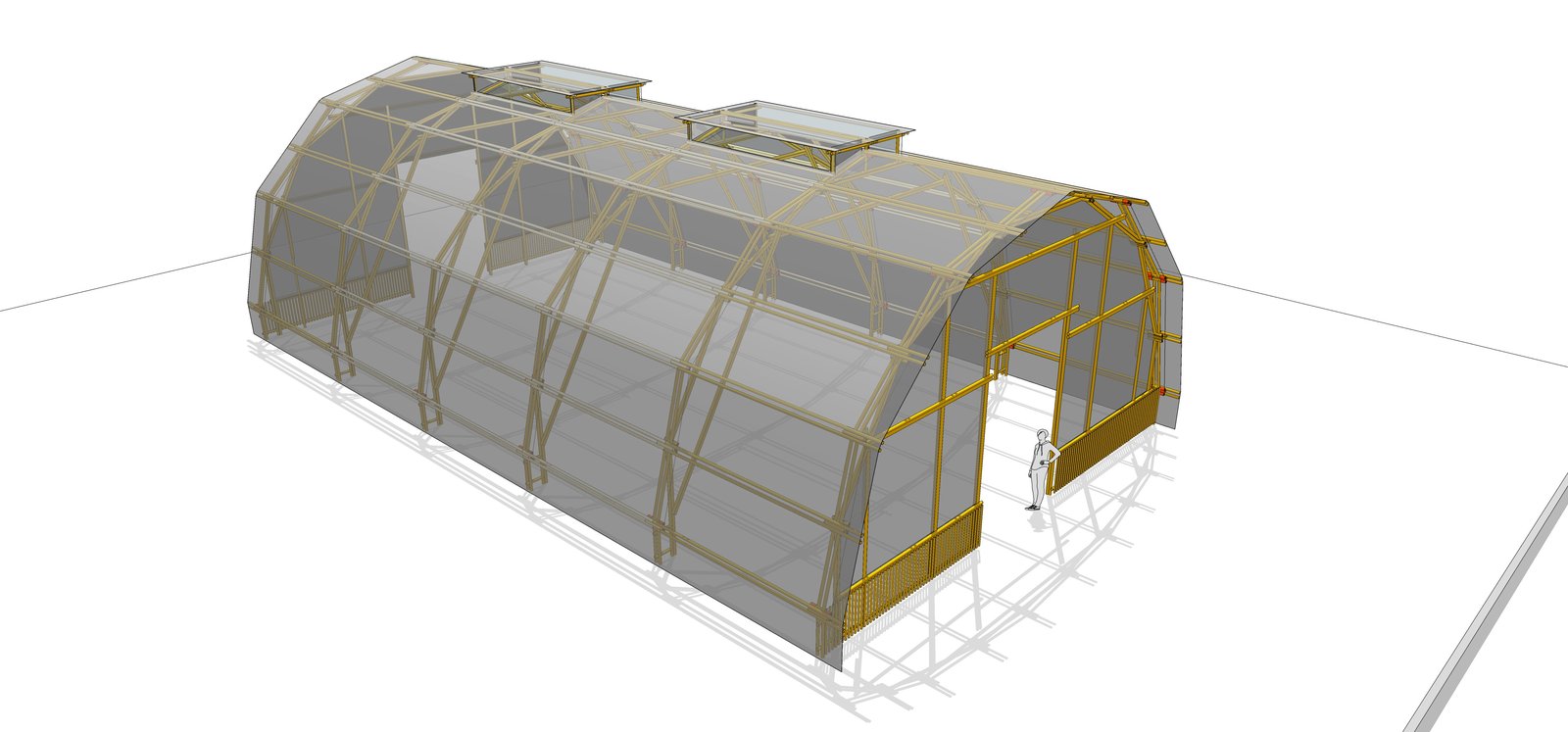

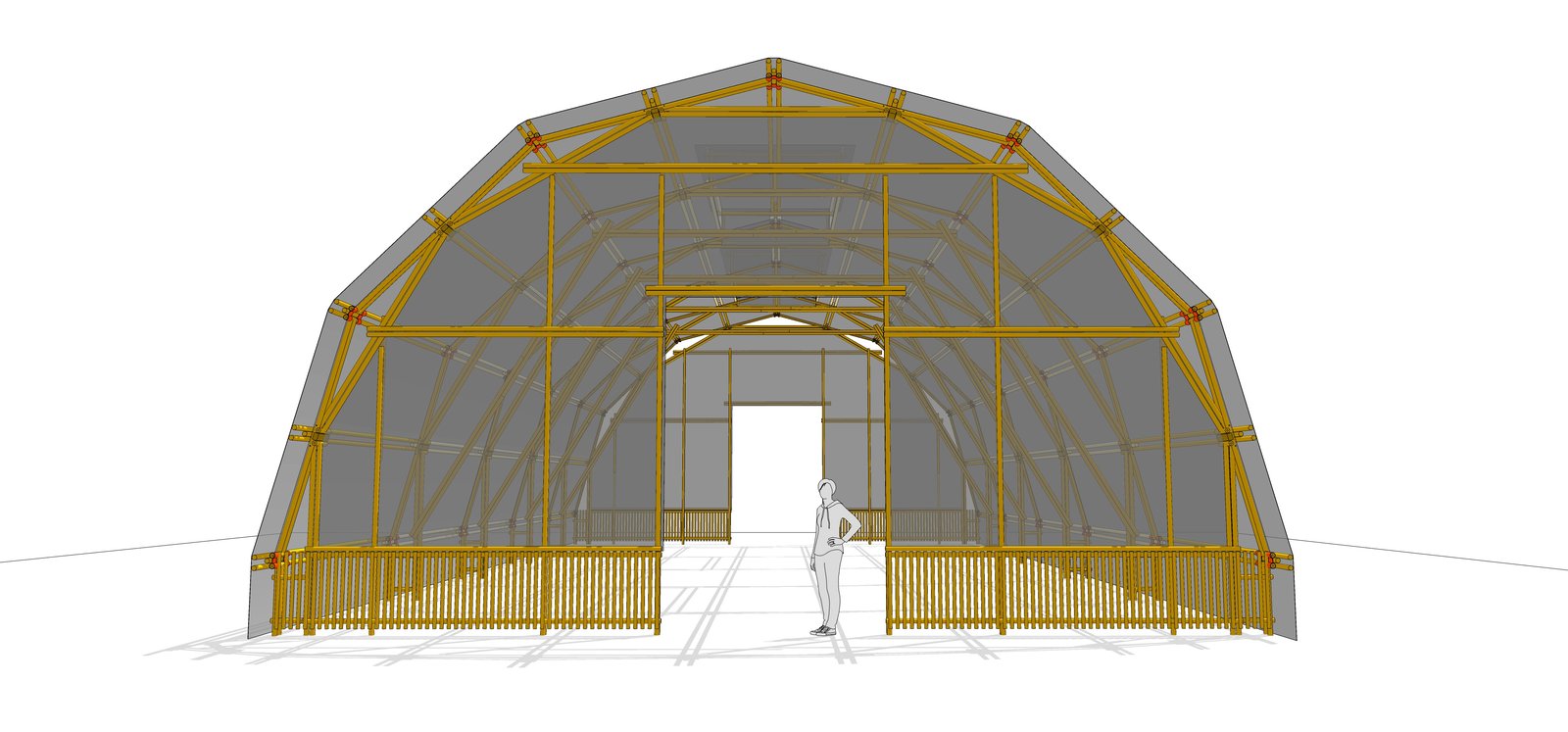

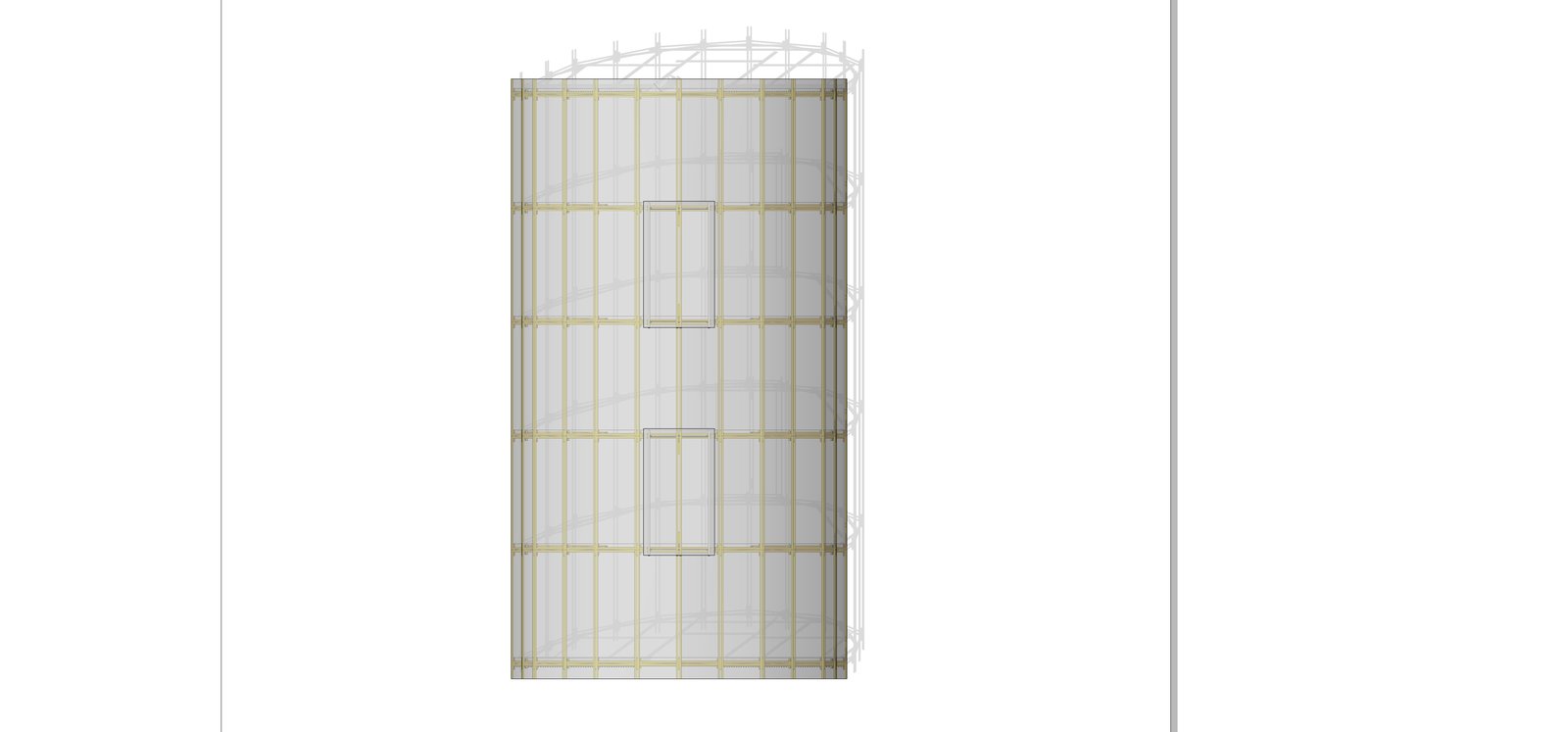

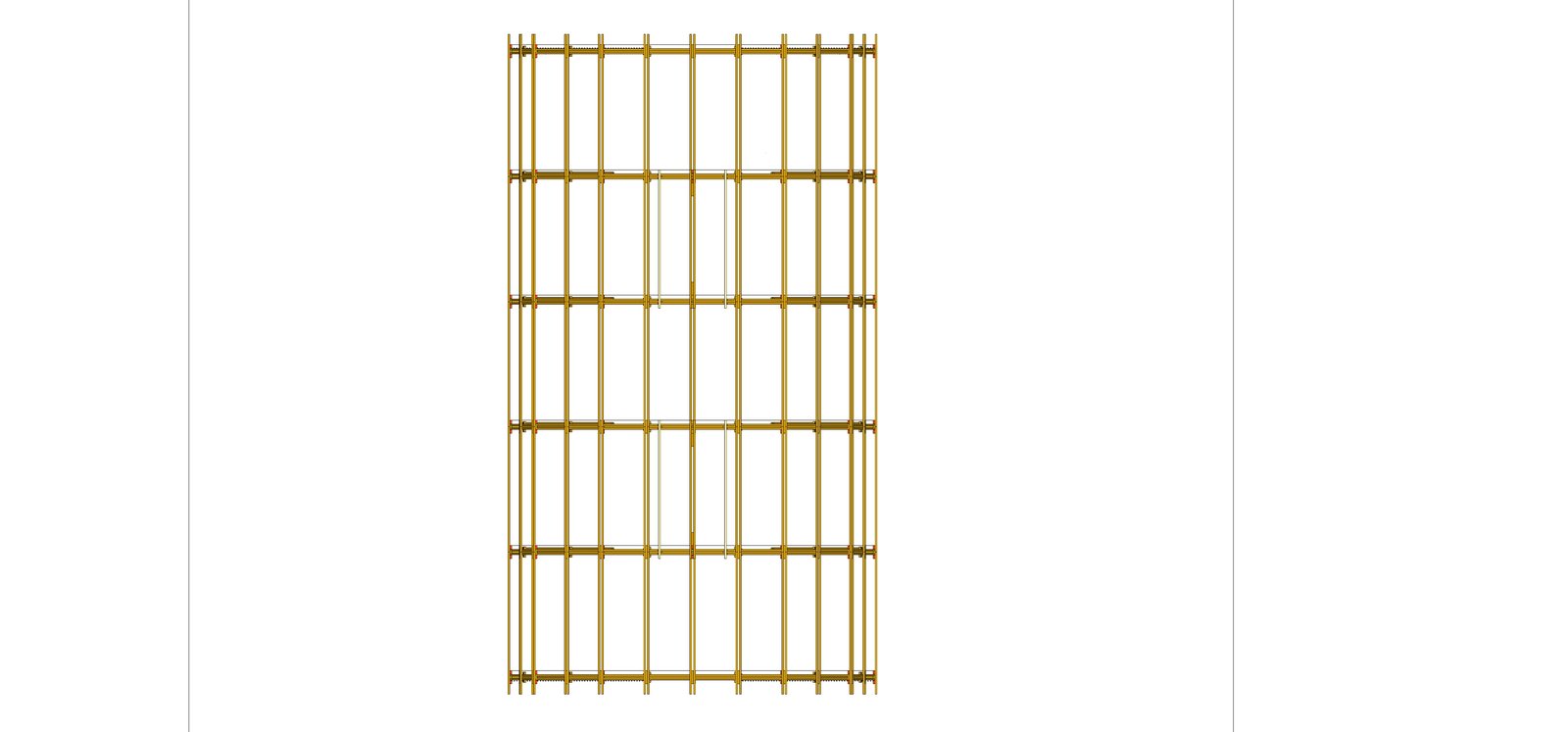

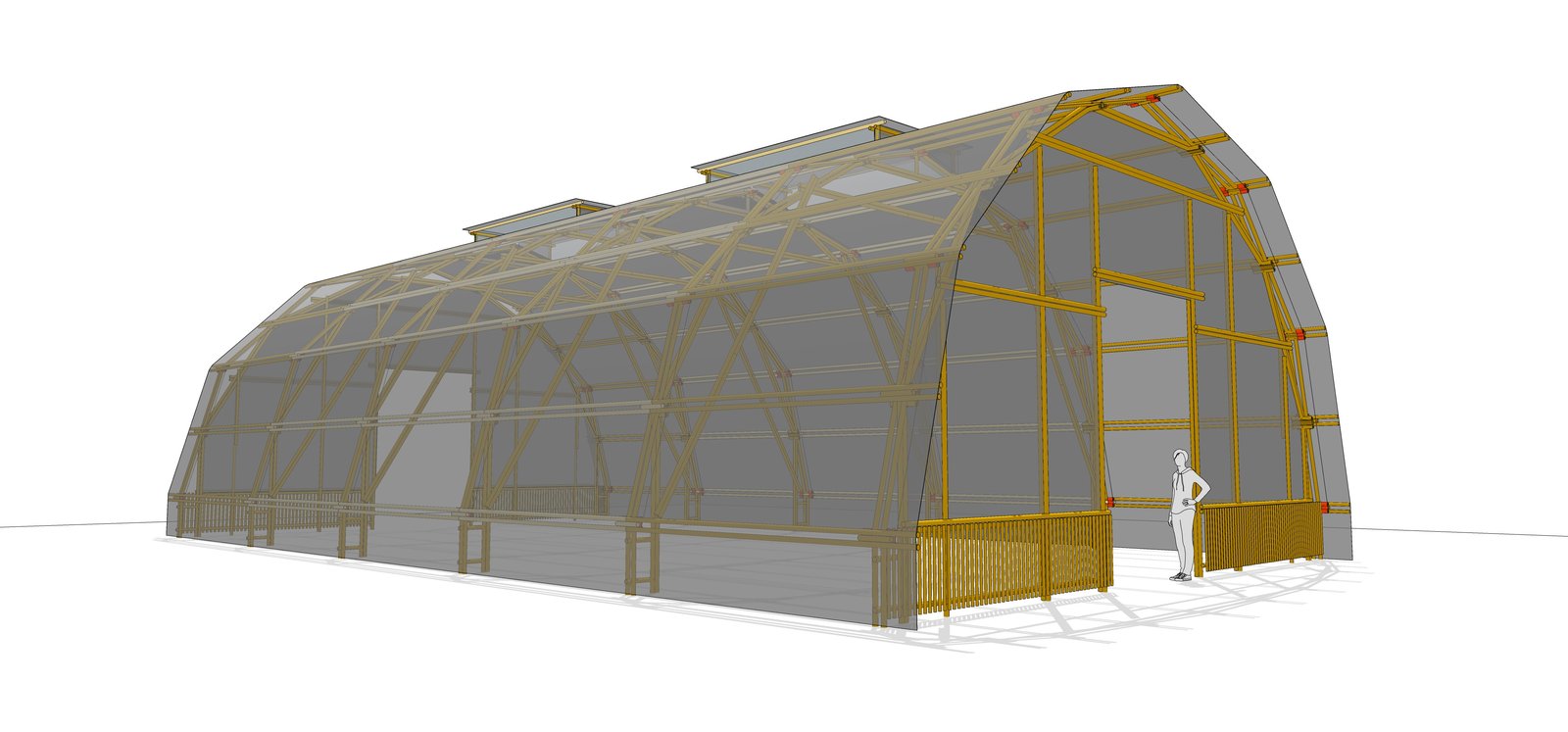

Truss Based — 36 ft Span
Maximum clear span — suitable for large-scale protected cultivation, mushroom growing, or open event pavilions.
| Clear Span Width | 36 ft |
| Bay Length | 12 ft per module |
| Ridge Height | 18 ft |
| Net Type | 50–75% shade net, UV-stabilised, durable HDPE |
| Wind Load Capacity | 50–60 km per hour |
